LM25066IAPSQ/NOPB - Texas Instruments

Description: System Power Management and Protection IC with PMBus

Download LM25066IAPSQ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

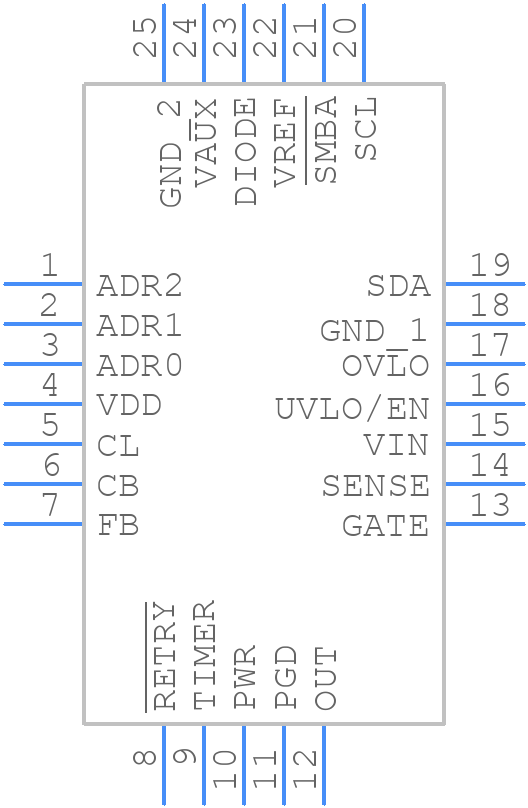

LM25066IAPSQ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM25066IAPSQ/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NHZ0024B
click to zoom
3D Models
LM25066IAPSQ/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - NHZ0024B
click to zoom

LM25066IAPSQ/NOPB Details

  • Manufacturer Part Number:

    LM25066IAPSQ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    2.9 V

  • JESD-30 Code:

    R-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    500 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    8 mA

  • Supply Voltage-Max (Vsup):

    17 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LM25066IAPSQ/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM25066IAPSQ/NOPB should include a solid ground plane, a separate power plane for the input voltage, and a heat sink attached to the exposed pad of the IC. The layout should also minimize the distance between the input capacitors and the IC.
  • The input capacitor should have a voltage rating of at least 2x the input voltage, and a capacitance value of 10uF to 22uF. The output capacitor should have a voltage rating of at least 2x the output voltage, and a capacitance value of 10uF to 47uF. X5R or X7R ceramic capacitors are recommended.
  • The maximum ambient temperature for the LM25066IAPSQ/NOPB is 85°C. However, the junction temperature should not exceed 150°C.
  • Yes, the LM25066IAPSQ/NOPB is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is suitable for use in harsh environments.
  • To ensure stability, the input and output capacitors should be placed close to the IC, and the PCB layout should be designed to minimize parasitic inductance and capacitance. Additionally, the input voltage should be well-regulated and free of noise.
