LM25066IPSQE/NOPB - Texas Instruments

Description: System Power Management and Protection IC with PMBus

Download LM25066IPSQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

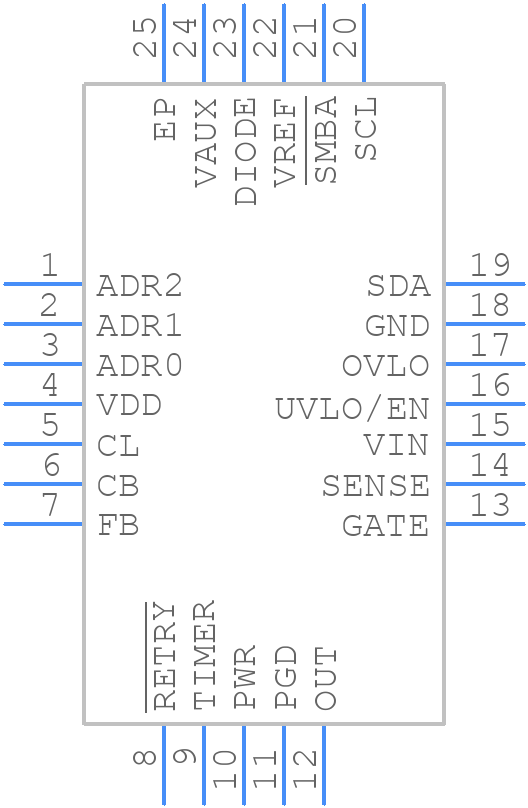

LM25066IPSQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM25066IPSQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NHZ0024B
click to zoom
3D Models
LM25066IPSQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - NHZ0024B
click to zoom

LM25066IPSQE/NOPB Details

  • Manufacturer Part Number:

    LM25066IPSQE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    2.9 V

  • JESD-30 Code:

    R-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    500 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    8 mA

  • Supply Voltage-Max (Vsup):

    17 V

  • Supply Voltage-Min (Vsup):

    2.9 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LM25066IPSQE/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM25066IPSQE/NOPB should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC. This helps to reduce thermal resistance and improve heat dissipation.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, a low-ESR output capacitor and a high-quality input capacitor can help prevent oscillations.
  • Although the datasheet specifies a maximum input voltage of 42V, it's recommended to limit the input voltage to 40V to ensure reliable operation and prevent damage to the device.
  • While it's possible to use a different inductor value or type, it's not recommended. The recommended inductor values and types are carefully selected to ensure optimal performance and stability. Using a different inductor may affect the device's performance and reliability.
  • To troubleshoot issues, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for oscillations or noise on the output voltage. If the issue persists, consult the datasheet and application notes or contact Texas Instruments support.
