A good PCB layout for the LM25066PSQ/NOPB should include a solid ground plane, a separate power plane for the input voltage, and a heat sink attached to the exposed pad of the QFN package. The layout should also minimize the distance between the input capacitors and the device pins.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. Also, avoid using capacitors with high ESL and ESR values.
The LM25066PSQ/NOPB is rated for operation up to 125°C ambient temperature. However, for reliable operation, it is recommended to keep the ambient temperature below 100°C to ensure a sufficient margin for thermal derating.
While it is possible to use a different inductor value or type, it is not recommended. The recommended inductor value and type are carefully selected to ensure optimal performance and stability. Using a different inductor may affect the device's performance, efficiency, and stability.
To troubleshoot issues with the LM25066PSQ/NOPB, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout match the recommended design. Check for signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to check for voltage ripple and oscillations.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LM25066PSQ/NOPB Overview

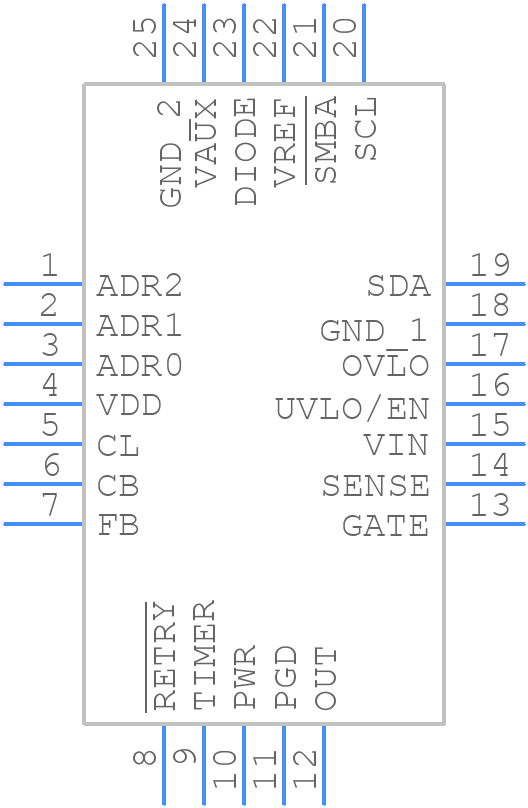

Use the download button to access the LM25066PSQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM250,
or try a keyword search, such as Power Management Circuits
