- Part Number LM2984T
- Manufacturer Texas Instruments
- Pin Count 11
- Part Category Integrated Circuit
- Package Category Transistor Outline, Vertical
- Footprint Name Transistor Outline, Vertical - NDJ0011B
- Released Date Apr 22, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM2984T Details
-
Manufacturer Part Number:
LM2984T
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Adjustable Threshold:
NO
-
Analog IC - Other Type:
VOLTAGE SUPERVISOR/RESET IC
-
JESD-30 Code:
R-PZFM-T11
-
JESD-609 Code:
e0
LM2984T Frequently Asked Questions (FAQs)
-
The maximum input voltage that can be applied to the LM2984T is 26V, but it's recommended to keep it below 24V for reliable operation.
-
Yes, the LM2984T is designed to handle high currents up to 3A, but it's essential to ensure proper heat sinking and thermal management to prevent overheating.
-
The output capacitor should be chosen based on the output voltage and current requirements. A general rule of thumb is to use a capacitor with a value between 10uF to 100uF, and an ESR (Equivalent Series Resistance) of less than 1 ohm.
-
The 'EN' (Enable) pin is used to turn the regulator on or off. When the 'EN' pin is pulled low, the regulator is disabled, and when it's pulled high, the regulator is enabled.
-
The LM2984T is rated for operation up to 125°C, but it's essential to ensure proper heat sinking and thermal management to prevent overheating. Additionally, the device's performance may degrade at high temperatures.
Trust Checks
Community Provided
System Verified
Community Approved
LM2984T Overview

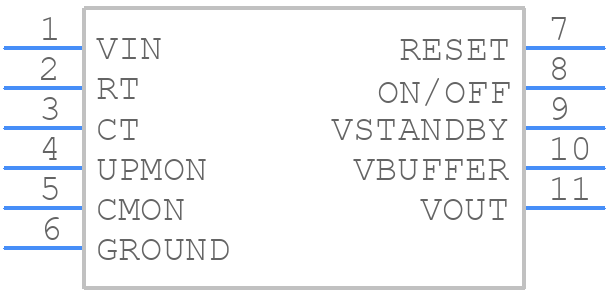

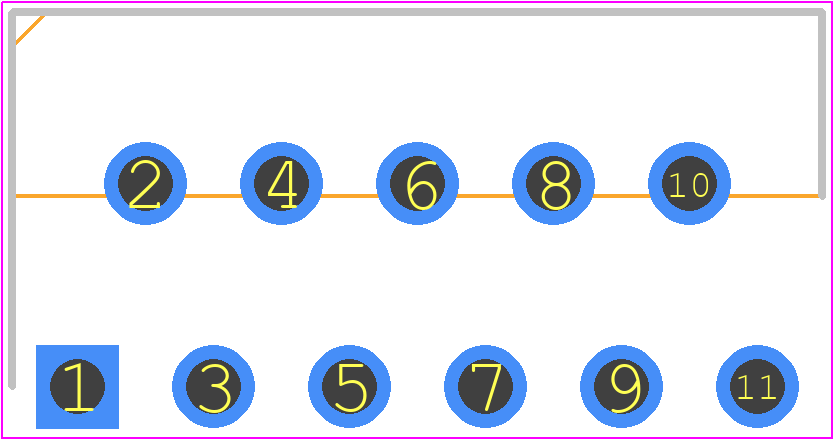

Use the download button to access the LM2984T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM298,
or try a keyword search, such as Power Management Circuits
