LM3658SD-A - Texas Instruments

Description: IC,Battery Charger,Dual Source USB/AC Li-Ion,Selectable timer,LLP10,LM3658SD-A

Download LM3658SD-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

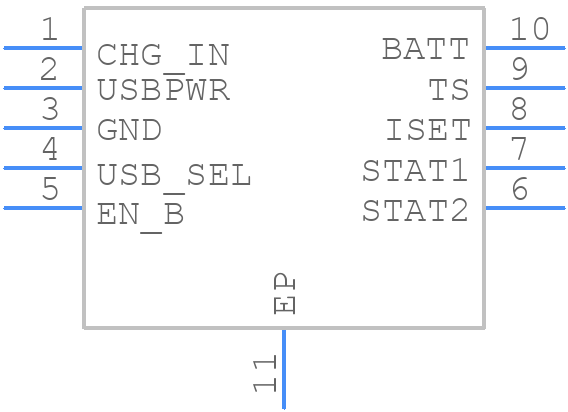

LM3658SD-A - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM3658SD-A - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSC0010A
click to zoom
3D Models
LM3658SD-A - Texas Instruments - 3D model - Small Outline No-lead - DSC0010A
click to zoom

LM3658SD-A Details

  • Manufacturer Part Number:

    LM3658SD-A

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Package Description:

    3 X 3 MM, LLP-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

LM3658SD-A Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LM3658SD-A is 28V, but it's recommended to keep it below 24V for reliable operation.
  • To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient output capacitor (at least 10uF), and keep the input capacitor (if used) as close to the VIN pin as possible.
  • Yes, the LM3658SD-A is rated for operation up to 125°C, but the output current may need to be derated at higher temperatures to prevent overheating. Consult the datasheet for thermal derating curves.
  • The output voltage of the LM3658SD-A is set by the resistive divider network connected to the FB pin. Use the formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
  • The minimum input voltage required for the LM3658SD-A to operate is 7V, but it's recommended to keep it above 8V for reliable startup and operation.
