Please enter a minimum 3 letters or numbers
Technical Content
Part Image

LM3658SDX-A/NOPB - Texas Instruments

Description: Dual Source USB/AC Li Chemistry Charger IC for Portable Applications

Download LM3658SDX-A/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

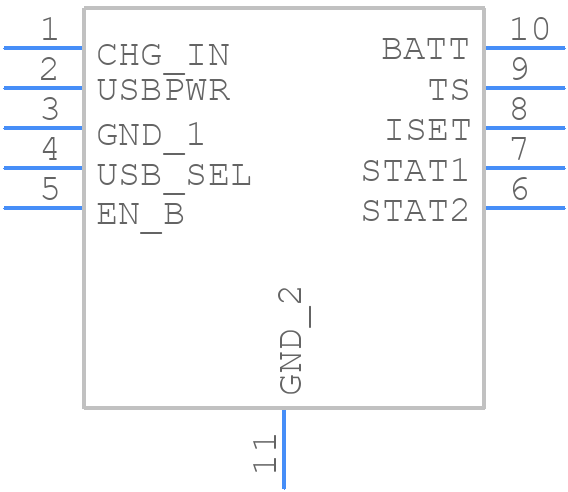

LM3658SDX-A/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM3658SDX-A/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - WSON-10
click to zoom
3D Models
LM3658SDX-A/NOPB - Texas Instruments - 3D model - Small Outline No-lead - WSON-10
click to zoom

LM3658SDX-A/NOPB Details

  • Manufacturer Part Number:

    LM3658SDX-A/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    RESTART THRESHOLD VOLTAGE IS 4 VOLT

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1000 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LM3658SDX-A/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM3658SDX-A/NOPB should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure that the thermal pad is connected to a solid ground plane. Use a 2-layer or 4-layer PCB with a thermal relief pattern to improve heat dissipation.
  • To ensure stable output voltage regulation, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value (at least 10uF) and type (X5R or X7R). Also, ensure that the feedback resistors are of low tolerance (1%) and that the feedback network is properly compensated.
  • The maximum ambient temperature for reliable operation of the LM3658SDX-A/NOPB is 85°C. However, the device can operate up to 125°C junction temperature. Ensure that the device is properly heat-sinked and that the thermal design is adequate for the application.
  • Yes, the LM3658SDX-A/NOPB is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is manufactured with automotive-grade processes. However, ensure that the device is used within the recommended operating conditions and that the application meets the required safety and reliability standards.
  • To protect the LM3658SDX-A/NOPB from overvoltage and undervoltage conditions, use a voltage supervisor or a power-on reset circuit to monitor the input voltage. You can also use a voltage clamp or a TVS diode to protect the device from voltage transients.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM3658SDX-A/NOPB Overview

Use the download button to access the LM3658SDX-A/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM365, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to LM3658SDX-A/NOPB

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
