A good PCB layout for the LM3704YCMM-308/NOPB should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. TI provides a recommended PCB layout in the datasheet.
To ensure the device operates within the recommended operating conditions, monitor the input voltage, output voltage, and output current. Also, ensure the device is properly decoupled and the input capacitor is selected based on the input voltage and output current requirements.
The maximum allowable ripple voltage on the input capacitor depends on the specific application and the device's operating conditions. As a general rule, the ripple voltage should be kept below 10% of the input voltage to ensure stable operation.
While ceramic capacitors can be used as output capacitors, they may not be the best choice due to their limited capacitance and high ESR. TI recommends using a low-ESR capacitor, such as an aluminum electrolytic or a film capacitor, to ensure stable operation and minimize output voltage ripple.
The output voltage tolerance can be calculated by considering the device's output voltage accuracy, the resistor tolerance, and the temperature coefficient of the resistors. TI provides a formula for calculating the output voltage tolerance in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3704YCMM-308/NOPB Overview

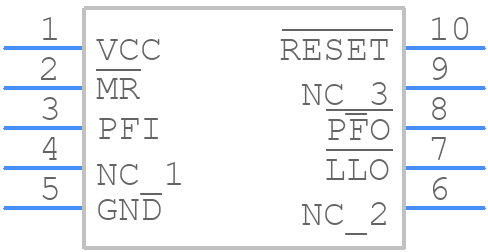

Use the download button to access the LM3704YCMM-308/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM370,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
