Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and EMI.
To ensure the LM3704YCMMX-308/NOPB operates within its SOA, monitor the input voltage, output current, and junction temperature. Use the datasheet's thermal derating curves and SOA graphs to determine the maximum allowable output current and voltage based on the operating temperature and input voltage.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed as close to the VIN pin as possible to minimize noise and ensure stable operation.
To troubleshoot issues with the LM3704YCMMX-308/NOPB, check the input voltage, output voltage, and output current using an oscilloscope or multimeter. Verify that the input capacitor is properly sized and placed, and that the PCB layout is correct. Also, check for any signs of overheating, such as excessive temperature rise or thermal shutdown.
Yes, the LM3704YCMMX-308/NOPB is compatible with lead-free soldering processes. Texas Instruments ensures that their devices meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, which prohibits the use of lead and other hazardous substances in electronic components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM3704YCMMX-308/NOPB Overview

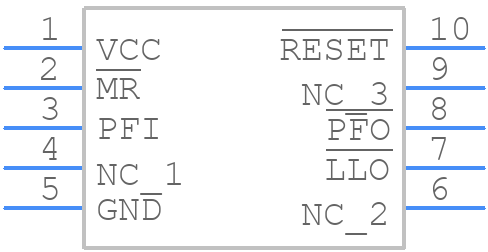

Use the download button to access the LM3704YCMMX-308/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM370,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
