LM385DRG4-2-5 - Texas Instruments

Description: LM385DRG4-2-5, Precision Voltage Reference 2.425 to 2.575V, 3% 20mA 8-Pin SOIC

Download LM385DRG4-2-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

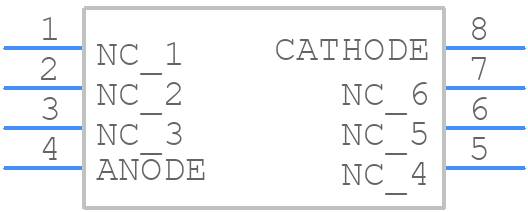

LM385DRG4-2-5 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM385DRG4-2-5 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
LM385DRG4-2-5 - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

LM385DRG4-2-5 Details

  • Manufacturer Part Number:

    LM385DRG4-2-5

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    2.575 V

  • Output Voltage-Min:

    2.425 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    20 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    3%

  • Width:

    3.9 mm

LM385DRG4-2-5 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a star-ground configuration, with the voltage reference pin connected to a quiet analog ground, and the output capacitor placed close to the output pin to minimize noise and oscillations.
  • To ensure stability, use a minimum output capacitance of 10uF, and keep the output capacitor close to the output pin. Also, avoid using long traces or wires between the output pin and the capacitor, and keep the voltage reference pin connected to a quiet analog ground.
  • The LM385DRG4-2-5 is rated for operation from -40°C to 125°C, but the accuracy and stability of the voltage reference may degrade at extreme temperatures. Consult the datasheet for detailed temperature-related specifications.
  • No, the LM385DRG4-2-5 is a voltage reference, not a voltage regulator. It is designed to provide a stable voltage reference, but it does not have the current drive capability to regulate voltage in a power supply circuit.
  • The output impedance of the LM385DRG4-2-5 is typically around 10 ohms, but it can vary depending on the output capacitance and the frequency of operation. Consult the datasheet for detailed impedance specifications and calculation methods.
