- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM386MM-1
- Part Number LM386MM-1
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D0008A
- Released Date May 26, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM386MM-1 Details
-
Manufacturer Part Number:
LM386MM-1
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
MSOP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Bandwidth-Nom:
300 kHz
-
Consumer IC Type:
AUDIO AMPLIFIER
LM386MM-1 Frequently Asked Questions (FAQs)
-
Texas Instruments recommends using a 10uF capacitor in parallel with a 0.1uF capacitor between the power supply pins (VCC and GND) to ensure stable operation and minimize noise.
-
The gain of the LM386MM-1 can be set using an external resistor and capacitor between pins 1 and 8. A gain of 20 is set by default, but it can be increased to 200 by adding a 10kΩ resistor and a 10nF capacitor. The gain can be calculated using the formula: Gain = 20 × (R1 + R2) / R2, where R1 is the resistance between pins 1 and 8, and R2 is the resistance between pin 8 and GND.
-
The maximum power output of the LM386MM-1 is 1W into a 4Ω load, but it can be increased to 2W into a 2Ω load with proper heat sinking. However, it's essential to ensure that the device does not exceed its maximum junction temperature of 150°C to prevent damage.
-
To reduce noise and hum, ensure that the power supply is well-regulated and filtered. Use a low-ESR capacitor for power supply decoupling, and keep the circuit layout clean and compact. Additionally, use a shielded cable for the input signal, and consider adding a noise filter capacitor between the input pins and GND.
-
Yes, the LM386MM-1 can be used as a headphone amplifier, but it's essential to ensure that the output power is limited to prevent damage to the headphones. A maximum output power of 100mW into a 32Ω load is recommended. Additionally, consider adding a voltage divider to reduce the output voltage to a safe level for headphones.
Trust Checks
Community Provided
System Verified
Community Approved
LM386MM-1 Overview

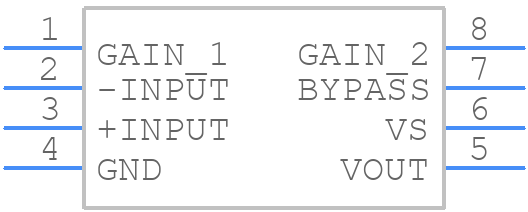

Use the download button to access the LM386MM-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM386,
or try a keyword search, such as Audio/Video Amplifiers
