LM4050WG2.5RLQV - Texas Instruments

Description: LM4050QML Precision Micropower Shunt Voltage Reference

Download LM4050WG2.5RLQV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

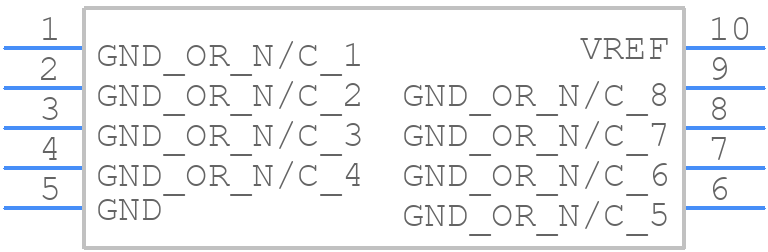

LM4050WG2.5RLQV - Texas Instruments - PCB symbol
