Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for audio circuit board design, such as separating analog and digital grounds, using a star-ground configuration, and minimizing trace lengths and loops.
To ensure stability, make sure to follow the recommended component values and PCB layout, and also consider the output impedance of the amplifier. Additionally, adding a small capacitor (e.g. 10nF) between the output pin and ground can help to reduce oscillations.
The maximum power dissipation of the LM4665ITL/NOPB is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the actual operating conditions.
Yes, the LM4665ITL/NOPB can be used in a stereo audio application by using two devices, one for each channel. However, it's important to ensure that the power supply and ground connections are properly decoupled and isolated to prevent crosstalk and noise.
The recommended input impedance for the LM4665ITL/NOPB is 10kΩ or higher. This ensures that the amplifier can drive the input capacitance and provides a stable gain.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4665ITL/NOPB Overview

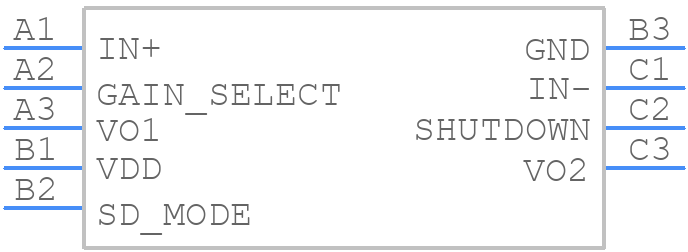

Use the download button to access the LM4665ITL/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM466,
or try a keyword search, such as Audio/Video Amplifiers
