Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for audio circuit board design, such as separating analog and digital grounds, using a star-ground configuration, and placing the LM4667MM close to the power supply. Additionally, using a 4-layer PCB with a dedicated ground plane can help reduce noise and EMI.
The gain setting of the LM4667MM depends on the specific application and the desired output level. A good starting point is to use the recommended gain setting in the datasheet, and then adjust it based on the output level of your audio source and the desired output level of your system. You can also use the LM4667MM's gain adjustment pins to fine-tune the gain setting.
The maximum power dissipation of the LM4667MM is 1.4W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, such as a thermal pad or a heat sink, and ensure good airflow around the device. You should also follow proper PCB design practices, such as using a sufficient copper area and thermal vias, to help dissipate heat.
Yes, the LM4667MM can be used in a stereo audio application. To configure it for stereo operation, you'll need to use two LM4667MM devices, one for each channel. You'll also need to use a stereo audio codec or a separate audio amplifier for each channel. Make sure to follow the datasheet recommendations for stereo operation and take into account the increased power consumption and heat dissipation.
To filter out noise and hum in your audio signal, you can use a combination of passive and active filtering techniques. Use a low-pass filter to remove high-frequency noise, and a high-pass filter to remove low-frequency hum. You can also use a notch filter to remove specific frequency components. Additionally, make sure to use a clean power supply and follow proper PCB design practices to minimize noise and hum.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LM4667MM Overview

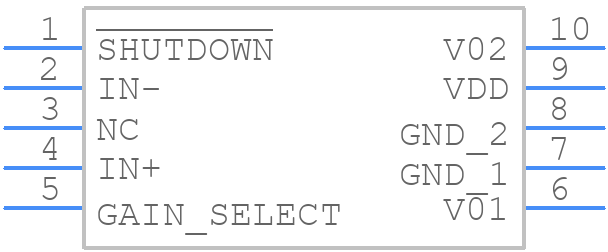

Use the download button to access the LM4667MM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM466,
or try a keyword search, such as Audio/Video Amplifiers
