A good PCB layout for the LM4673SD/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a star-ground configuration to reduce noise and EMI.
The choice of input and output capacitors for the LM4673SD/NOPB depends on the specific application and operating conditions. In general, X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage are recommended. The capacitance value should be chosen based on the desired output voltage ripple and transient response.
The LM4673SD/NOPB is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. In general, the device should be derated for high-temperature operation to ensure reliable operation.
To ensure stability, it's essential to follow the recommended PCB layout and component selection guidelines. Additionally, the device's output should be decoupled with a capacitor, and the input should be filtered with a capacitor and a resistor. The device's compensation pin should also be properly connected to ensure stability.
The maximum output current of the LM4673SD/NOPB is 3A, but this can be limited by the device's thermal performance and the application's power dissipation requirements. The device's output current should be derated for high-temperature operation and high-output voltage applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4673SD/NOPB Overview

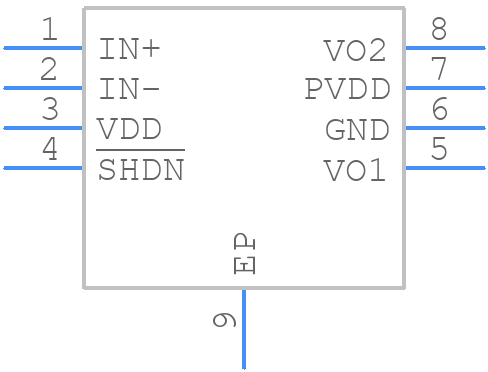

Use the download button to access the LM4673SD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM467,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
