LM4673SD - Texas Instruments

Description: LM4673SD, Audio Amplifier Class-D mono 70dB +85 °C 8-Pin LLP EP

Download LM4673SD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

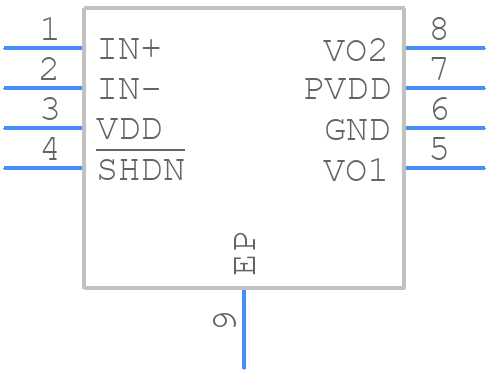

Symbol
LM4673SD - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM4673SD - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGQ0008A
click to zoom
3D Models
LM4673SD - Texas Instruments - 3D model - Small Outline No-lead - NGQ0008A
click to zoom

LM4673SD Details

  • Manufacturer Part Number:

    LM4673SD

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    LLP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    3 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    2.65 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    3.75 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LM4673SD Frequently Asked Questions (FAQs)

  • The minimum recommended supply voltage is 4.5V, although the device can operate down to 3.5V with reduced performance.
  • To ensure stability, use a minimum 10uF ceramic capacitor between the VIN and PG pins, and a 0.1uF ceramic capacitor between the BYPASS pin and GND. Additionally, keep the PCB layout compact and minimize trace lengths.
  • The maximum output power of the LM4673SD is approximately 2.3W per channel when using a single 5V supply voltage, and 1.1W per channel when using a single 3.3V supply voltage.
  • To configure the LM4673SD for a BTL configuration, connect the output of one amplifier to the input of the other amplifier, and tie the two outputs together. This will allow the device to drive a single load with increased power.
  • The recommended heat sink for the LM4673SD is a thermal pad or a heat sink with a thermal resistance of less than 10°C/W. A heat sink is required to maintain a safe junction temperature, especially at high output powers.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM4673SD Overview

Use the download button to access the LM4673SD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM467, or try a keyword search, such as Audio/Video Amplifiers
