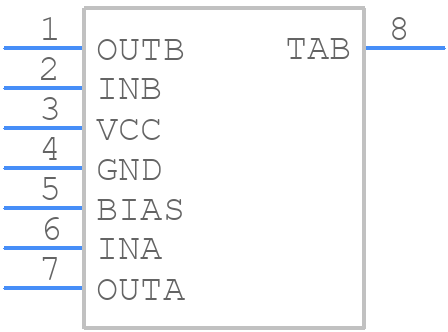

Symbol

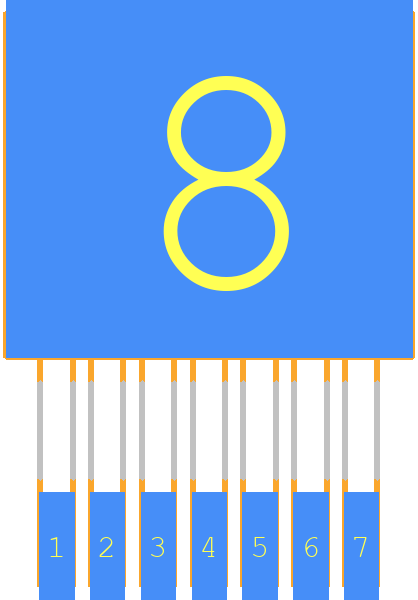

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM4752TS
- Part Number LM4752TS
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - TO127P1435X464-8N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM4752TS Details
-
Manufacturer Part Number:
LM4752TS
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
D2PAK
-
Package Description:
PLASTIC, TO-220, DDPAK-7
-
Pin Count:
4
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Bandwidth-Nom:
65 kHz
LM4752TS Frequently Asked Questions (FAQs)
-
A good PCB layout for the LM4752TS involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the power supply. Additionally, using a 4-layer PCB with a dedicated ground plane can help reduce noise and EMI.
-
To optimize the gain setting, start by setting the gain to the minimum recommended value (20dB) and then adjust it based on the input signal level. Use an oscilloscope to monitor the output signal and adjust the gain to achieve the desired signal-to-noise ratio. Also, consider using a variable gain amplifier or an automatic gain control circuit to optimize the gain dynamically.
-
The LM4752TS has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device near its maximum power rating. Also, consider using thermal interface materials to improve heat transfer between the device and the heat sink.
-
To troubleshoot issues with the LM4752TS, start by checking the power supply voltage and ensuring it is within the recommended range. Then, check the input signal level and ensure it is within the recommended range. Use an oscilloscope to monitor the output signal and look for signs of distortion or oscillation. Check the PCB layout and ensure that it is not contributing to the issue. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
-
Yes, the LM4752TS can be used in a stereo audio application. To configure it, use two devices, one for each channel, and connect the inputs and outputs accordingly. Ensure that the power supply and ground connections are made to both devices, and consider using a common mode filter to reduce noise and hum.
Trust Checks
System Verified
LM4752TS Overview
Use the download button to access the LM4752TS schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LM475,
or try a keyword search, such as Audio/Video Amplifiers
