LM4808MX/NOPB - Texas Instruments

Description: LM4808 Dual 105 mW Headphone Amplifier

Download LM4808MX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

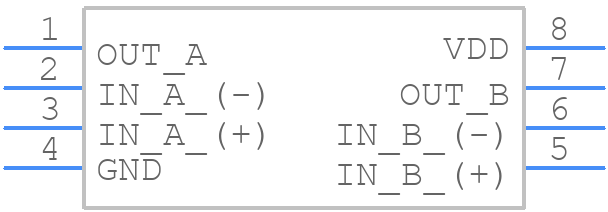

LM4808MX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM4808MX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SOIC d
click to zoom
3D Models
LM4808MX/NOPB - Texas Instruments - 3D model - Small Outline Packages - SOIC d
click to zoom

LM4808MX/NOPB Details

  • Manufacturer Part Number:

    LM4808MX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    0.105 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LM4808MX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM4808MX/NOPB involves keeping the input and output traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value of 2.2uF to 10uF, while the output capacitor should be a low-ESR ceramic or electrolytic capacitor with a value of 10uF to 22uF. The capacitor values and types may vary depending on the specific application and output voltage.
  • The LM4808MX/NOPB can handle input voltages up to 26V, but it's recommended to keep the input voltage below 24V to ensure reliable operation and to prevent damage to the device.
  • The output voltage of the LM4808MX/NOPB can be adjusted by changing the ratio of the resistors R1 and R2 in the feedback network. The output voltage can be calculated using the formula: Vout = 1.23V x (1 + R2/R1).
  • The LM4808MX/NOPB can deliver up to 3A of output current, but the maximum output current may be limited by the input voltage, output voltage, and thermal considerations.
