LM4810MM/NOPB - Texas Instruments

Description: Texas Instruments LM4810MM/NOPB 2-Channel Headphone Audio Amplifier Stereo 20kHz, 8-Pin VSSOP

Download LM4810MM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

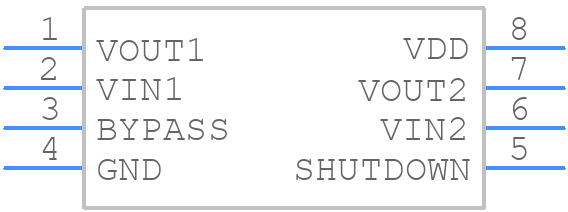

Symbol
LM4810MM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM4810MM/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - LM4810MM/NOPB
click to zoom
3D Models
LM4810MM/NOPB - Texas Instruments - 3D model - Small Outline Packages - LM4810MM/NOPB
click to zoom

LM4810MM/NOPB Details

  • Manufacturer Part Number:

    LM4810MM/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    0.105 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LM4810MM/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM4810MM involves keeping the input and output traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Choose X7R or X5R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage. The capacitance value should be between 2.2uF to 10uF. For the output capacitor, a 10uF to 22uF X7R or X5R ceramic capacitor is recommended.
  • The LM4810MM is rated for operation from -40°C to 85°C. However, the device can be operated at temperatures above 85°C with derating. Consult the datasheet for derating curves.
  • Yes, the LM4810MM is suitable for battery-powered devices due to its low quiescent current (IQ) of 1.5mA. However, ensure that the device is powered down or put into shutdown mode when not in use to conserve battery life.
  • To ensure EMC, use a shielded enclosure, keep the device away from antennas and high-frequency circuits, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, follow good PCB layout practices and use a solid ground plane.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM4810MM/NOPB Overview

Use the download button to access the LM4810MM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM481, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
