A good PCB layout for the LM48312TLX/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the specific application requirements, and the input capacitor should be chosen to ensure a stable input impedance. It's also crucial to consider the power supply rejection ratio (PSRR) and noise sensitivity in the design.
The LM48312TLX/NOPB has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and airflow in the system design. The device's thermal resistance (θJA) is 45°C/W, and the maximum operating junction temperature is 125°C.
The input capacitor should be selected based on the input voltage ripple and noise requirements. A ceramic capacitor with a value between 1-10μF is typically recommended. The output capacitor should be chosen based on the output voltage ripple and noise requirements, and a value between 10-47μF is commonly used. The capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) should also be considered.
To minimize EMI and EMC issues, it's essential to follow proper PCB layout and design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed. Additionally, the device's switching frequency and harmonics should be considered in the system design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM48312TLX/NOPB Overview

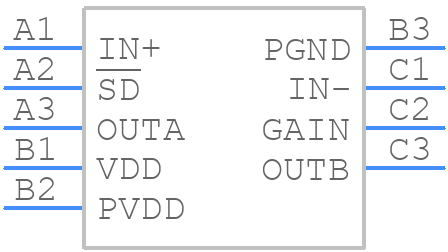

Use the download button to access the LM48312TLX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM483,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
