Texas Instruments provides a recommended PCB layout for the LM48512TL/NOPB in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as using a solid ground plane, placing thermal vias under the device, and keeping the PCB layer stack-up symmetrical.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermal management system to keep the junction temperature within the recommended range.
Using a different input capacitor value than recommended may affect the stability and performance of the device. A larger input capacitor can improve filtering, but may also increase the startup time and reduce the power supply rejection ratio (PSRR). A smaller input capacitor may improve PSRR, but may also reduce filtering and increase noise sensitivity. It's essential to evaluate the impact of different input capacitor values on the overall system performance.
To troubleshoot issues with the device's output voltage regulation, start by verifying the input voltage, output voltage, and load current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to measure the output voltage ripple and noise, and check for any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Using a different output capacitor value than recommended may affect the stability and performance of the device. A larger output capacitor can improve filtering and reduce output voltage ripple, but may also increase the startup time and reduce the transient response. A smaller output capacitor may improve transient response, but may also reduce filtering and increase output voltage ripple. It's essential to evaluate the impact of different output capacitor values on the overall system performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM48512TL/NOPB Overview

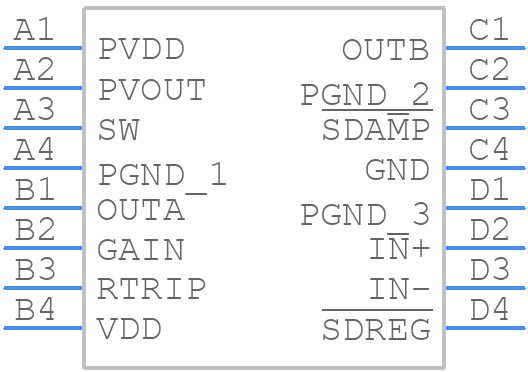

Use the download button to access the LM48512TL/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM485,
or try a keyword search, such as Audio/Video Amplifiers
