Texas Instruments provides a recommended PCB layout for the LM48512TLX/NOPB in the datasheet, but it's also recommended to follow general thermal design guidelines, such as placing the device near a thermal pad, using thermal vias, and keeping the surrounding area clear of other components.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal design, and consider derating the device's power dissipation. Additionally, Texas Instruments provides a thermal derating chart in the datasheet to help with this process.
Using a different inductor value than recommended can affect the performance and efficiency of the LM48512TLX/NOPB. A smaller inductor value can lead to higher ripple current and reduced efficiency, while a larger value can result in slower transient response and increased cost. It's recommended to use the inductor value specified in the datasheet or to consult with Texas Instruments' application notes for guidance.
To troubleshoot issues with the device's output voltage regulation, start by verifying the input voltage, output voltage, and feedback resistors. Check for any signs of overheating, and ensure that the device is properly soldered and connected. If the issue persists, consult the datasheet and application notes for guidance, or contact Texas Instruments' technical support for further assistance.
The LM48512TLX/NOPB is designed to meet EMI and EMC standards, but it's still important to follow proper PCB layout and design practices to minimize electromagnetic interference. This includes using a solid ground plane, keeping sensitive traces away from the device, and using shielding and filtering components as needed. Consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM48512TLX/NOPB Overview

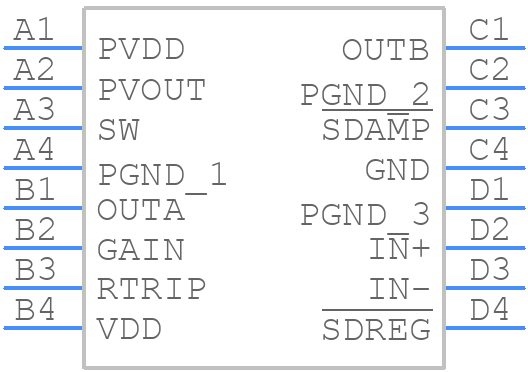

Use the download button to access the LM48512TLX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM485,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
