Texas Instruments provides a recommended PCB layout for the LM48560TL/NOPB in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as using a solid ground plane, placing thermal vias under the device, and using a heat sink if necessary.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a heat sink if necessary, and ensure good thermal conductivity between the device and the heat sink. Additionally, consider using thermal interface materials and following proper soldering techniques.
Using a lower input voltage than the recommended 5V may result in reduced output current capability, increased dropout voltage, and decreased efficiency. Using a higher input voltage may result in increased power dissipation, reduced reliability, and potential damage to the device. It's essential to follow the recommended input voltage range to ensure optimal performance and reliability.
To troubleshoot issues with the LM48560TL/NOPB, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, thermal management, and soldering. Use oscilloscopes and thermal imaging cameras to identify potential issues. Consult the datasheet and application notes for guidance, and contact Texas Instruments support if necessary.
The LM48560TL/NOPB is designed to meet EMI and RFI standards, but it's still essential to follow proper PCB layout and design practices to minimize electromagnetic interference. Use shielding, filtering, and grounding techniques to reduce EMI and RFI. Consult the datasheet and application notes for guidance on EMI and RFI considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM48560TL/NOPB Overview

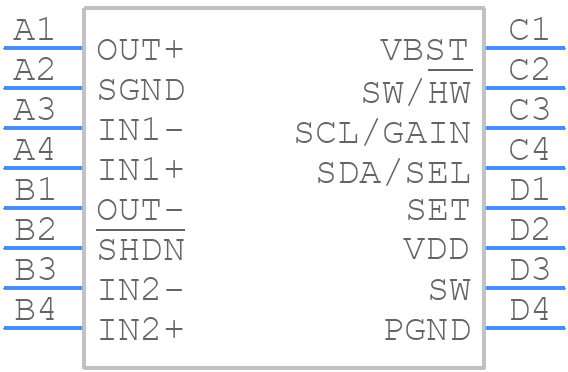

Use the download button to access the LM48560TL/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM485,
or try a keyword search, such as Audio/Video Amplifiers
