A good PCB layout for the LM4901MMX/NOPB involves keeping the input and output traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are properly selected and placed, and that the device is operated within its recommended operating conditions.
The maximum power dissipation of the LM4901MMX/NOPB is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the actual operating conditions.
The LM4901MMX/NOPB is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and ensure proper thermal management to prevent overheating.
To troubleshoot issues with the LM4901MMX/NOPB, start by verifying the power supply voltage, input and output signals, and PCB layout. Use an oscilloscope to check for noise, oscillations, or other anomalies. Also, ensure that the device is operated within its recommended operating conditions and that the input and output capacitors are properly selected and placed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4901MMX/NOPB Overview

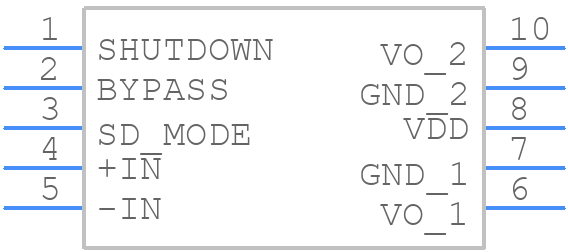

Use the download button to access the LM4901MMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM490,
or try a keyword search, such as Audio/Video Amplifiers
