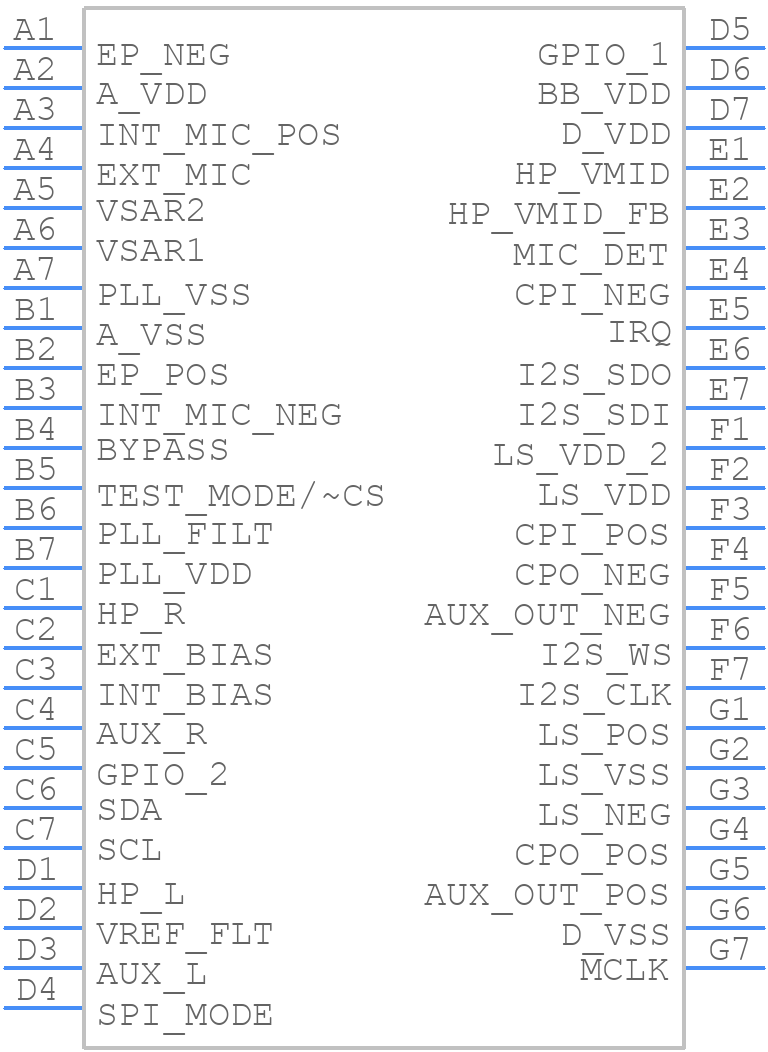

LM4935RL - Texas Instruments

LM4935RL Details

• Manufacturer Part Number:

  LM4935RL

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  BGA

• Package Description:

  4 X 4 MM, MICRO, SMDXT-49

• Pin Count:

  49

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  ALSO REQUIRES 1.8V TO 4.5V SUPPLY

• Consumer IC Type:

  CONSUMER CIRCUIT

• JESD-30 Code:

  S-PBGA-B49

• JESD-609 Code:

  e0

• Length:

  3.924 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  49

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA49,7X7,20

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.725 mm

• Supply Voltage-Max (Vsup):

  4.5 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Width:

  3.924 mm
