A good PCB layout for the LM4940TS/NOPB involves separating the analog and digital grounds, using a star-ground configuration, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated ground plane and to keep the analog and digital signal traces separate.
The output filter components for the LM4940TS/NOPB should be chosen based on the desired cutoff frequency, impedance, and attenuation requirements. A good starting point is to use the recommended values in the datasheet, and then adjust them based on the specific application requirements. It's also important to consider the component tolerances and parasitic effects.
The maximum power dissipation of the LM4940TS/NOPB is dependent on the ambient temperature and the thermal resistance of the package. To ensure the device doesn't overheat, it's recommended to provide adequate heat sinking, use a thermal interface material, and keep the ambient temperature within the recommended operating range.
Yes, the LM4940TS/NOPB can be used in a stereo audio application. To configure it, you'll need to use two devices, one for each channel, and connect the inputs and outputs accordingly. You'll also need to ensure that the devices are properly synchronized and that the master clock is distributed correctly.
To troubleshoot common issues with the LM4940TS/NOPB, start by checking the power supply voltage, decoupling, and PCB layout. Verify that the input and output signals are within the recommended ranges, and check for any signs of oscillation or instability. Use an oscilloscope to visualize the signals and identify any anomalies. If the issue persists, consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4940TS/NOPB Overview

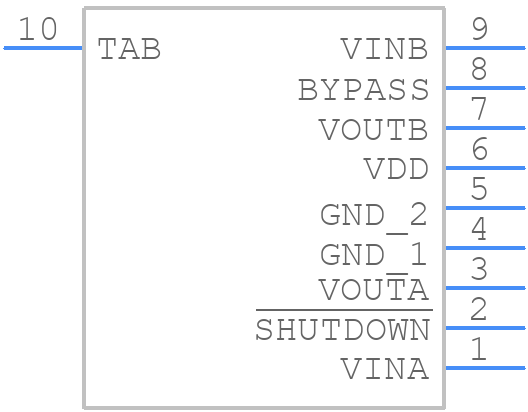

Use the download button to access the LM4940TS/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM494,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
