Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for audio circuit board design, such as separating analog and digital grounds, using a star-ground configuration, and minimizing trace lengths and loops.
Proper biasing is critical for the LM4941SD. Ensure that the voltage supply is within the recommended range (4.5V to 12V), and that the input and output capacitors are properly sized and placed. Additionally, ensure that the gain-setting resistors are correctly chosen and placed to achieve the desired gain.
The LM4941SD is a low-power audio amplifier, and its maximum power handling capability is limited. The device can deliver up to 2W of power into a 4Ω load, but it's recommended to operate it at a lower power level to ensure reliability and minimize heat generation.
To reduce noise and hum, ensure that the power supply is well-regulated and filtered, and that the input and output stages are properly decoupled. Additionally, use shielded cables and connectors, and consider adding noise-reducing components such as ferrite beads or common-mode chokes.
Yes, the LM4941SD can be used in a stereo application by using two devices, one for each channel. However, it's important to ensure that the devices are properly matched and that the layout and component selection are optimized for stereo operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4941SD/NOPB Overview

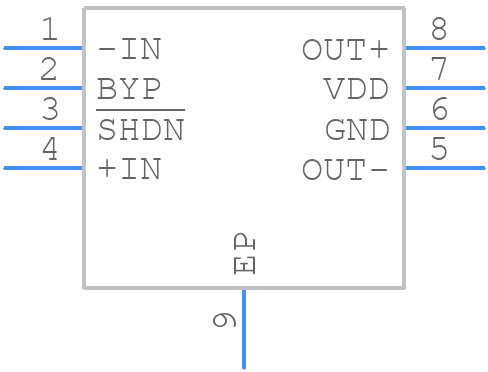

Use the download button to access the LM4941SD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM494,
or try a keyword search, such as Audio/Video Amplifiers
