Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for audio circuit board design, such as separating analog and digital grounds, using a star-ground configuration, and minimizing trace lengths and loops.
Proper biasing is critical for the LM4941. Make sure to follow the recommended biasing scheme in the datasheet, and pay attention to the voltage supply and current requirements. Also, ensure that the input and output capacitors are properly selected and placed.
The LM4941 is a 2W audio power amplifier, but the maximum power handling capability depends on the load impedance, supply voltage, and ambient temperature. Refer to the datasheet for specific power derating curves and thermal management guidelines.
Yes, the LM4941 can be used in a bridged configuration to increase the power output. However, this requires careful consideration of the load impedance, supply voltage, and thermal management. Texas Instruments provides a bridged amplifier configuration example in the datasheet.
Common issues with the LM4941 can often be traced back to improper biasing, incorrect component selection, or poor PCB layout. Check the datasheet for troubleshooting guidelines, and use tools like oscilloscopes and signal generators to debug the circuit.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4941TM/NOPB Overview

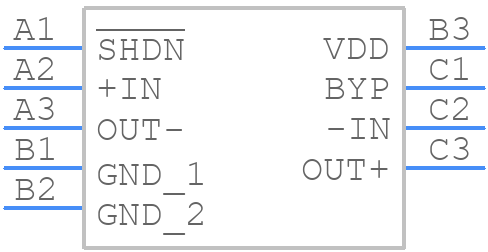

Use the download button to access the LM4941TM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM494,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
