LM49450SQX/NOPB - Texas Instruments

Description: Audio Amp Headphone/Speaker 2-CH Stereo 2.5W Class-D 32-Pin WQFN EP T/R

Download LM49450SQX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

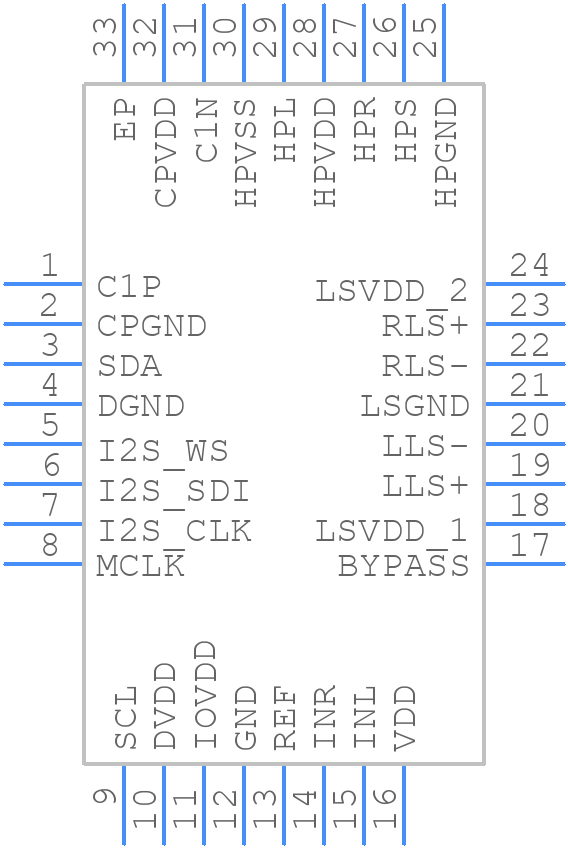

LM49450SQX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM49450SQX/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTV0032A 2021
click to zoom
3D Models
LM49450SQX/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RTV0032A 2021
click to zoom

LM49450SQX/NOPB Details

  • Manufacturer Part Number:

    LM49450SQX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    1.1 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LM49450SQX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors close to the device.
  • The LM49450SQX/NOPB requires a specific power-up sequence to ensure proper initialization. The datasheet recommends powering up the device with a slow ramp-up of the supply voltage (typically 1-10 ms) to prevent latch-up and ensure proper initialization of the internal registers.
  • The LM49450SQX/NOPB has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. The device can withstand up to 2 kV of ESD protection according to the IEC 61000-4-2 standard.
  • The LM49450SQX/NOPB is rated for operation up to 85°C, but it's recommended to derate the device's performance and power consumption at higher temperatures. Consult the datasheet for thermal derating guidelines and ensure proper thermal management in the system design.
  • Troubleshooting issues with the LM49450SQX/NOPB typically involves checking the power supply, clocking, and analog input/output signals. Use an oscilloscope to verify signal integrity and check for noise or distortion. Consult the datasheet and application notes for specific troubleshooting guidelines.
