A good PCB layout for the LM4946SQ/NOPB involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded inductor and keeping the PCB traces short and direct can help minimize EMI and noise.
The inductor value for the LM4946SQ/NOPB depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet, and then adjust it based on the specific application requirements. A higher inductor value can reduce ripple current, but may increase the size and cost of the inductor.
The LM4946SQ/NOPB has an operating ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's essential to consider the specific application requirements and potential thermal management needs.
Yes, the LM4946SQ/NOPB is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive systems. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
To troubleshoot issues with the LM4946SQ/NOPB, start by checking the PCB layout and component placement, ensuring that the device is properly decoupled and that the input and output capacitors are of sufficient value. Next, verify that the input voltage and current are within the recommended specifications. If the issue persists, use an oscilloscope to analyze the device's output and input waveforms, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4946SQ/NOPB Overview

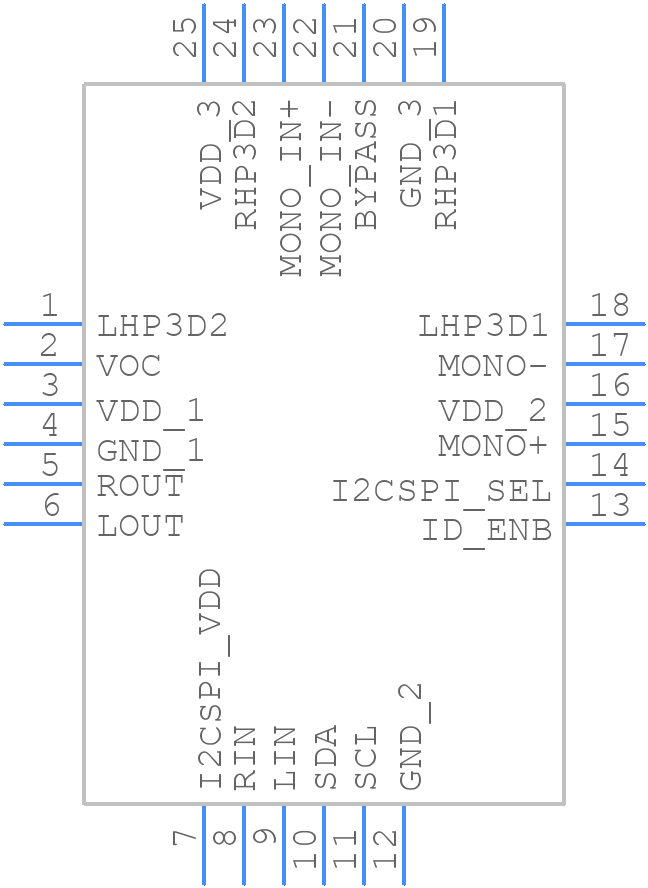

Use the download button to access the LM4946SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM494,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
