Texas Instruments provides a recommended PCB layout in the LM4960SQ evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the LM4960SQ for low noise and high power supply rejection ratio (PSRR), use a low-ESR input capacitor, keep the input and output capacitors close to the device, and use a quiet power supply. Additionally, ensure that the PCB layout is optimized for low noise and that the device is properly decoupled.
The maximum output current capability of the LM4960SQ is 1 A, but this can be limited by the thermal performance of the device and the PCB. It's essential to ensure that the device is properly heatsinked and that the PCB is designed to handle the maximum output current.
The LM4960SQ is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's essential to ensure that the device is properly heatsinked and that the PCB is designed to handle high temperatures. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heatsink.
To troubleshoot issues with the LM4960SQ, start by checking the input and output voltages, as well as the device's thermal performance. Use an oscilloscope to check for noise and oscillations, and ensure that the PCB layout is correct. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM4960SQ Overview

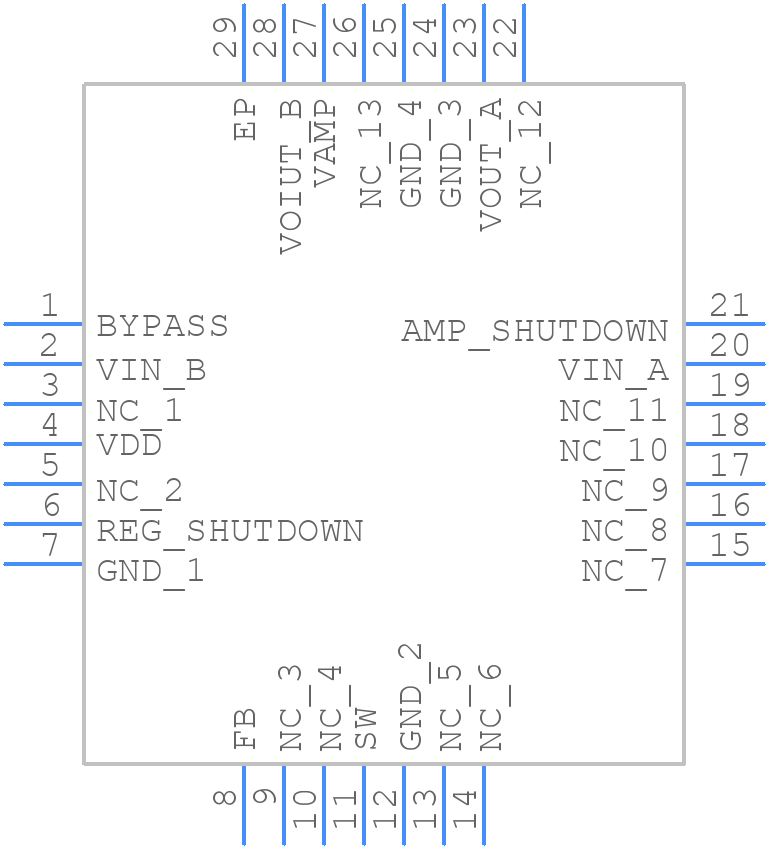

Use the download button to access the LM4960SQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM496,
or try a keyword search, such as Audio/Video Amplifiers
