- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM5007MMX
- Part Number LM5007MMX
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DGK (S-PDSO-G8)
- Released Date Aug 3, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM5007MMX Details
-
Manufacturer Part Number:
LM5007MMX
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
MSOP
-
Package Description:
MSOP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Analog IC - Other Type:
SWITCHING REGULATOR
LM5007MMX Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the LM5007MMX datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
-
The selection of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides guidelines for capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
-
The LM5007MMX is rated for operation up to 125°C, but the maximum ambient temperature for reliable operation depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to ensure that the device is operated within its recommended operating conditions.
-
To ensure stability and prevent oscillations, it's recommended to follow the stability analysis guidelines in the datasheet, including the use of the recommended compensation components and the calculation of the stability criteria. Additionally, it's recommended to use a low-ESR output capacitor and to minimize the output capacitor's equivalent series resistance (ESR).
-
The recommended input voltage range for optimal performance is 4.5V to 60V, but the device can operate up to 65V. However, operating the device at the upper end of the input voltage range may reduce its efficiency and reliability.
Trust Checks
Community Provided
System Verified
Community Approved
LM5007MMX Overview

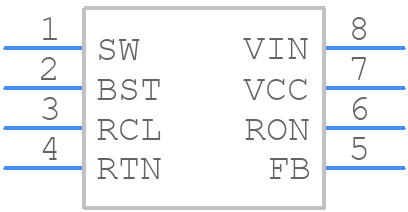

Use the download button to access the LM5007MMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM500,
or try a keyword search, such as Switching Regulator or Controllers
