Texas Instruments provides a recommended PCB layout in the LM5034MTC evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, reduce electromagnetic interference (EMI), and ensure reliable operation.
The input capacitor selection depends on the input voltage, output voltage, and desired ripple current. A general rule of thumb is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value that ensures the ripple current is within the recommended range (typically 10-20% of the maximum output current). TI also provides a capacitor selection guide in the datasheet.
The maximum ambient temperature for the LM5034MTC is 85°C. As the ambient temperature increases, the device's performance may degrade, including reduced output voltage accuracy, increased output voltage ripple, and decreased efficiency. It's essential to ensure proper thermal management, such as providing adequate airflow or using a heat sink, to maintain reliable operation within the specified temperature range.
Yes, the LM5034MTC is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is designed to operate in harsh environments. However, it's essential to follow the recommended design guidelines, testing, and validation procedures to ensure the device meets the specific requirements of the application.
TI provides a troubleshooting guide in the datasheet and application notes, which covers common issues and their possible causes. Additionally, engineers can use tools like oscilloscopes and thermal cameras to diagnose problems. It's also recommended to review the design and layout to ensure they meet the recommended guidelines and to consult with TI's technical support team if needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5034MTC Overview

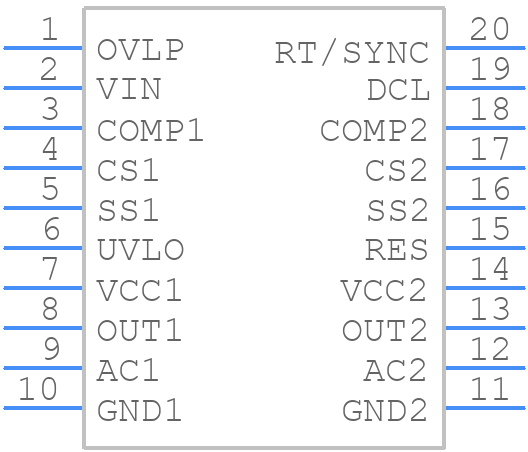

Use the download button to access the LM5034MTC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM503,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
