LM5060QDGSRQ1 - Texas Instruments

Description: High-Side Protection Controller with Low Quiescent Current

Download LM5060QDGSRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

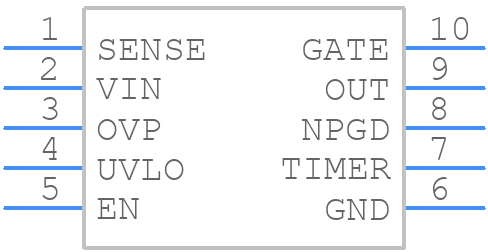

Symbol
LM5060QDGSRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM5060QDGSRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - LM5060QDGSRQ1
click to zoom
3D Models
LM5060QDGSRQ1 - Texas Instruments - 3D model - Small Outline Packages - LM5060QDGSRQ1
click to zoom

LM5060QDGSRQ1 Details

  • Manufacturer Part Number:

    LM5060QDGSRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-02-15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • Input Voltage-Max:

    65 V

  • Input Voltage-Min:

    5.5 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    500 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    65 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LM5060QDGSRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM5060QDGSRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should have a low ESR and be rated for the input voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The output capacitor should have a low ESR and be rated for the output voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The capacitance value should be chosen based on the desired output ripple voltage.
  • The maximum ambient temperature range for the LM5060QDGSRQ1 is -40°C to 125°C. However, the device can operate at a junction temperature of up to 150°C.
  • To ensure stability, the LM5060QDGSRQ1 requires a minimum output capacitance of 10uF. The output capacitor should be placed close to the device, and the input capacitor should be placed close to the input voltage source. Additionally, the device should be operated within the recommended input voltage range.
  • The maximum input voltage for the LM5060QDGSRQ1 is 60V. However, the device can operate with an input voltage as low as 4.5V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM5060QDGSRQ1 Overview

Use the download button to access the LM5060QDGSRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM506, or try a keyword search, such as Power Management Circuits
