LM5068MM-2/NOPB - Texas Instruments

Description: Negative Voltage Hot Swap Controller

Download LM5068MM-2/NOPB Model

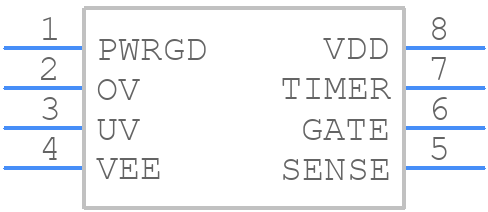

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LM5068MM-2/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK  (S-PDSO-G8)
click to zoom
3D Models
LM5068MM-2/NOPB - Texas Instruments  - 3D model - Small Outline Packages - DGK  (S-PDSO-G8)
click to zoom

LM5068MM-2/NOPB Details

  • Manufacturer Part Number:

    LM5068MM-2/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • Input Voltage-Max:

    -10 V

  • Input Voltage-Min:

    -90 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    500 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.09 mm

  • Supply Current-Max (Isup):

    1.3 mA

  • Supply Voltage-Max (Vsup):

    90 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LM5068MM-2/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM5068MM-2/NOPB should prioritize thermal management, minimize noise coupling, and ensure good power and ground plane distribution. TI provides a recommended layout in the datasheet and application notes.
  • Choose input and output capacitors with low ESR, high ripple current rating, and suitable voltage ratings. TI recommends using X5R or X7R ceramic capacitors with a minimum capacitance of 10uF for the input and output.
  • The LM5068MM-2/NOPB is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. Consult the datasheet and thermal design guidelines for more information.
  • Yes, the LM5068MM-2/NOPB is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured with automotive-grade processes.
  • Consult the datasheet and application notes for troubleshooting guidelines. Common issues can be resolved by checking the PCB layout, component selection, and input/output voltage levels. TI also provides technical support and FAQs on their website.
