A good PCB layout for the LM5069MMX-1/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure the output capacitor has a low ESR (Equivalent Series Resistance) and is placed close to the device. Also, ensure the input capacitor is properly sized and placed close to the device. Additionally, a small ceramic capacitor (e.g., 10nF) can be added between the VIN and GND pins to improve stability.
The LM5069MMX-1/NOPB can handle input voltages up to 60V, but it's recommended to keep the input voltage below 50V to ensure reliable operation and to prevent damage to the device.
The LM5069MMX-1/NOPB is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. Consult the datasheet for thermal derating information.
To troubleshoot issues with the LM5069MMX-1/NOPB, check the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly sized and placed. Check for overheating by measuring the device temperature. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM5069MMX-1/NOPB Overview

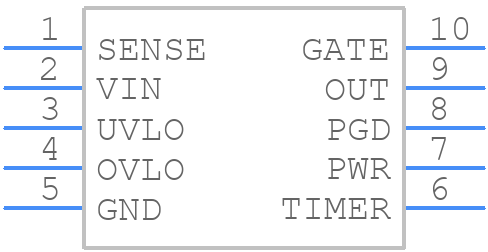

Use the download button to access the LM5069MMX-1/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM506,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
