LM73100RPWR - Texas Instruments

Description: 2.7-V TO 23-V, 5.5-A IDEAL DIODE

Download LM73100RPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

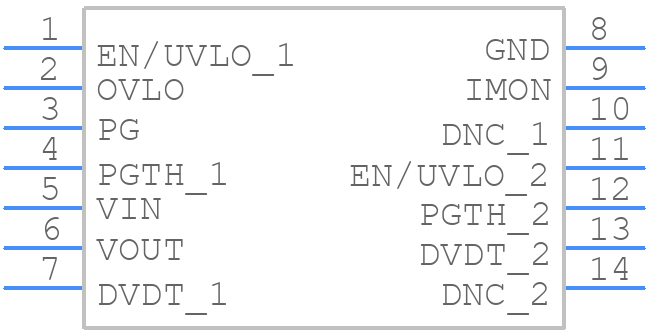

Symbol
LM73100RPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM73100RPWR - Texas Instruments PCB footprint - Other - Other - LM73100RPWR-2
click to zoom
3D Models
LM73100RPWR - Texas Instruments - 3D model - Other - LM73100RPWR-2
click to zoom

LM73100RPWR Details

  • Manufacturer Part Number:

    LM73100RPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-10-09

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • Input Voltage-Max:

    23 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PQCC-N10

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC10,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    23 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.53V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LM73100RPWR Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM73100RPWR should include a solid ground plane, wide power traces, and a thermal relief pattern under the device. TI provides a recommended layout in the datasheet and application notes.
  • To ensure stability, use a minimum output capacitance of 10uF, and ensure the output capacitor's ESR is within the recommended range. Also, use a low-ESR input capacitor and keep the input and output capacitors close to the device.
  • The maximum input voltage for the LM73100RPWR is 42V, but it's recommended to operate within the specified input voltage range (6.5V to 36V) for optimal performance and reliability.
  • The output voltage ripple and noise can be calculated using the equations provided in the datasheet. The ripple is primarily dependent on the output capacitor's ESR and the switching frequency, while the noise is dependent on the device's internal switching frequency and the output capacitor's value.
  • A low-ESR ceramic or film capacitor with a value between 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed close to the device's input pins to minimize noise and ensure stable operation.
