A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using a 2-layer or 4-layer board, and minimizing the distance between the device and the thermal pad or heat sink. Additionally, using thermal vias and a solid ground plane can help to dissipate heat more efficiently.
To ensure the device is operating within the recommended operating conditions, monitor the input voltage, output voltage, and output current. Make sure the input voltage is within the recommended range of 2.2V to 5.5V, the output voltage is within the recommended range of 0.8V to 3.3V, and the output current is within the recommended range of 0A to 2A.
When handling the device, take precautions to prevent electrostatic discharge (ESD) damage. Use an ESD wrist strap or mat, handle the device by the body or pins, and avoid touching the pins or leads. Also, avoid bending or flexing the leads, and use a soldering iron with a temperature-controlled tip to prevent overheating.
To troubleshoot issues with the device, start by checking the input voltage, output voltage, and output current. Verify that the device is operating within the recommended operating conditions. Check for short circuits, open circuits, or other faults in the circuit. Use an oscilloscope to measure the output voltage and current, and consult the datasheet for troubleshooting guidelines.
The device has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Avoid operating the device in high-temperature environments, and monitor the device temperature using a thermocouple or thermal sensor.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM74502DDFR Overview

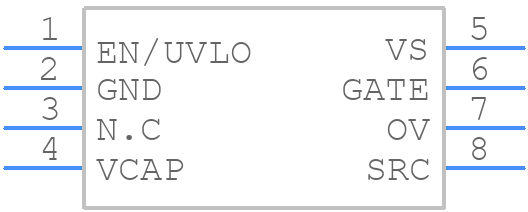

Use the download button to access the LM74502DDFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM745,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
