Texas Instruments provides a recommended PCB layout for the LM74502HQDDFRQ1 in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as using a thermal pad, vias, and a heat sink. Additionally, TI offers a thermal calculator tool to help with thermal design.
To ensure proper biasing, follow the recommended operating conditions and biasing circuits provided in the datasheet. Additionally, pay attention to the input and output voltage ranges, and ensure that the device is operated within the recommended temperature range.
Operating the device beyond the recommended operating conditions can lead to reduced performance, increased power consumption, and potentially even device damage or failure. It's essential to follow the recommended operating conditions to ensure reliable operation and to avoid compromising the device's performance or lifespan.
To troubleshoot issues with the device, start by reviewing the datasheet and application notes for guidance on common issues and solutions. Check the PCB layout, component values, and biasing circuits to ensure they are correct. Use oscilloscopes and other measurement tools to identify the source of the issue, and consult with TI's support resources or a qualified engineer if needed.
The LM74502HQDDFRQ1 has built-in ESD protection, but it's still essential to follow proper ESD handling and storage procedures to prevent damage. Use ESD-safe materials, handling tools, and storage containers, and follow TI's recommended ESD handling guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM74502HQDDFRQ1 Overview

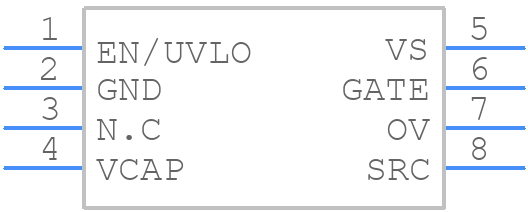

Use the download button to access the LM74502HQDDFRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM745,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
