A good PCB layout for the LM74502QDDFRQ1 involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power-up and initialization, it's recommended to follow a specific power-up sequence, which includes applying the input voltage, waiting for the internal voltage regulator to stabilize, and then enabling the device. Additionally, it's recommended to use a soft-start circuit to limit the inrush current during power-up.
The LM74502QDDFRQ1 has a maximum junction temperature of 150°C. To ensure it doesn't overheat, it's recommended to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to keep the device away from other heat sources. Additionally, it's recommended to monitor the device's temperature and shut it down if it exceeds the maximum temperature rating.
To troubleshoot issues with the LM74502QDDFRQ1, it's recommended to follow a systematic approach, which includes checking the input voltage, output voltage, and current, as well as verifying the device's configuration and layout. Additionally, it's recommended to use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
Yes, the LM74502QDDFRQ1 is susceptible to electromagnetic interference (EMI) and electromagnetic compatibility (EMC) issues. To ensure compliance with regulatory requirements, it's recommended to follow good design practices, such as using shielding, filtering, and grounding, and to perform EMI/EMC testing and certification.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM74502QDDFRQ1 Overview

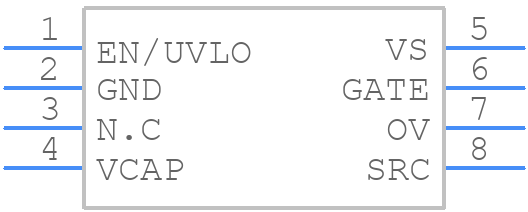

Use the download button to access the LM74502QDDFRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM745,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
