LM74700MDDFREP - Texas Instruments

Description: Enhanced Ideal Diode Controller

Download LM74700MDDFREP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

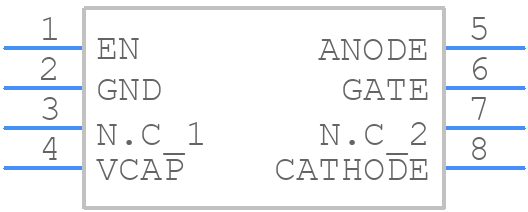

Symbol
LM74700MDDFREP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM74700MDDFREP - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - DDF0008A_(H=1.1mm)
click to zoom
3D Models
LM74700MDDFREP - Texas Instruments - 3D model - SOT23 (8-Pin) - DDF0008A_(H=1.1mm)
click to zoom

LM74700MDDFREP Details

  • Manufacturer Part Number:

    LM74700MDDFREP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • Input Voltage-Max:

    65 V

  • Input Voltage-Min:

    3.2 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -50 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.11

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    65 V

  • Supply Voltage-Min (Vsup):

    3.2 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

LM74700MDDFREP Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a low-thermal-resistance path from the device to the heat sink or PCB ground plane.
  • Implement a robust thermal management system, including a heat sink, thermal interface material, and adequate airflow. Monitor the device's junction temperature (TJ) and ensure it stays within the recommended operating range.
  • Choose an input capacitor with a high ripple current rating, low ESR, and a voltage rating that exceeds the maximum input voltage. A 10-22 μF ceramic or film capacitor is a good starting point.
  • Use a shielded inductor, keep the switching node (SW) away from sensitive nodes, and add a common-mode choke or EMI filter to reduce conducted emissions. Ensure good PCB layout practices, such as separating analog and digital grounds.
  • Choose an output capacitor with a high ripple current rating, low ESR, and a voltage rating that exceeds the maximum output voltage. Place the capacitor close to the device's output pins and ensure a low-inductance path to the output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM74700MDDFREP Overview

Use the download button to access the LM74700MDDFREP schematic symbol, PCB footprint, and 3D model.
