A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from TI provides additional recommendations.
To ensure reliable start-up and shutdown, it's essential to follow the recommended power sequencing and voltage ramp rates specified in the datasheet. Additionally, using a soft-start circuit can help reduce inrush currents and prevent voltage drops during start-up.
Operating the device beyond the recommended temperature range can lead to reduced reliability, increased thermal resistance, and potentially even device failure. It's essential to ensure the device operates within the specified temperature range to maintain optimal performance and reliability.
To troubleshoot issues with output voltage regulation, start by verifying the input voltage, output voltage, and load current. Check for any signs of overheating, and ensure the device is properly soldered and connected. If issues persist, consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
The LM74700QDDFRQ1 is designed to meet CISPR 25 Class 5 and CISPR 32 Class B EMI standards. To ensure EMI and EMC compliance, follow proper PCB layout and shielding guidelines, and consider using EMI filters or shielding components as needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM74700QDDFRQ1 Overview

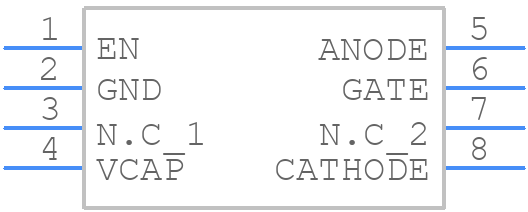

Use the download button to access the LM74700QDDFRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM747,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
