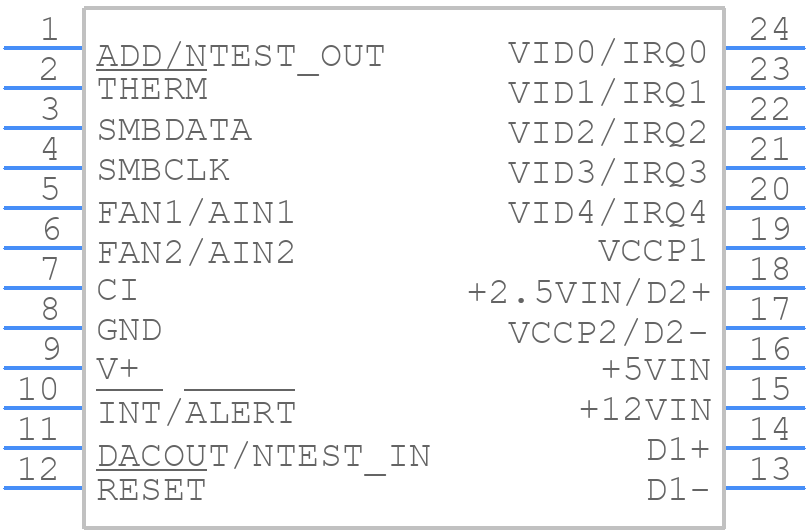

LM87CIMT - Texas Instruments

LM87CIMT Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern around the device to ensure optimal thermal performance. A detailed layout guide can be found in the application note 'LM87 PCB Layout Guidelines' (SLUA271).
• How do I calibrate the LM87 for accurate temperature measurement?
  The LM87 does not require calibration for temperature measurement. It has an internal temperature sensor with a built-in calibration that provides an accuracy of ±2°C over the operating temperature range. However, if higher accuracy is required, an external calibration can be performed using a precision temperature source and a multimeter.
• What is the maximum cable length for the remote temperature sensing input?
  The maximum cable length for the remote temperature sensing input is not specified in the datasheet, but it is generally recommended to keep the cable length as short as possible to minimize noise and signal degradation. A cable length of up to 10 feet (3 meters) is typically acceptable, but it's recommended to use a shielded cable and to follow proper noise reduction techniques.
• Can I use the LM87 to measure temperature in a high-vibration environment?
  Yes, the LM87 is designed to operate in high-vibration environments. It has a rugged design and is qualified for automotive and industrial applications. However, it's recommended to follow proper mounting and installation procedures to ensure reliable operation in high-vibration environments.
• Is the LM87 compatible with lead-free soldering processes?
  Yes, the LM87 is compatible with lead-free soldering processes. It has a lead-free finish and is RoHS compliant, making it suitable for use in lead-free soldering applications.
