Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and EMI.
Proper power supply decoupling is crucial for the LM98714. Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close to the device as possible, and consider adding additional decoupling capacitors on the input and output lines. Also, ensure the power supply is stable and within the recommended voltage range.
The LM98714 is rated for operation from -40°C to 125°C (junction temperature). However, the device's performance may degrade at higher temperatures, so it's essential to ensure proper thermal management and heat dissipation in your design.
Yes, the LM98714 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific requirements of your application.
When troubleshooting issues with the LM98714, start by verifying the power supply and decoupling, then check the input and output signals for noise or distortion. Use an oscilloscope to visualize the signals and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM98714BCMTX/NOPB Overview

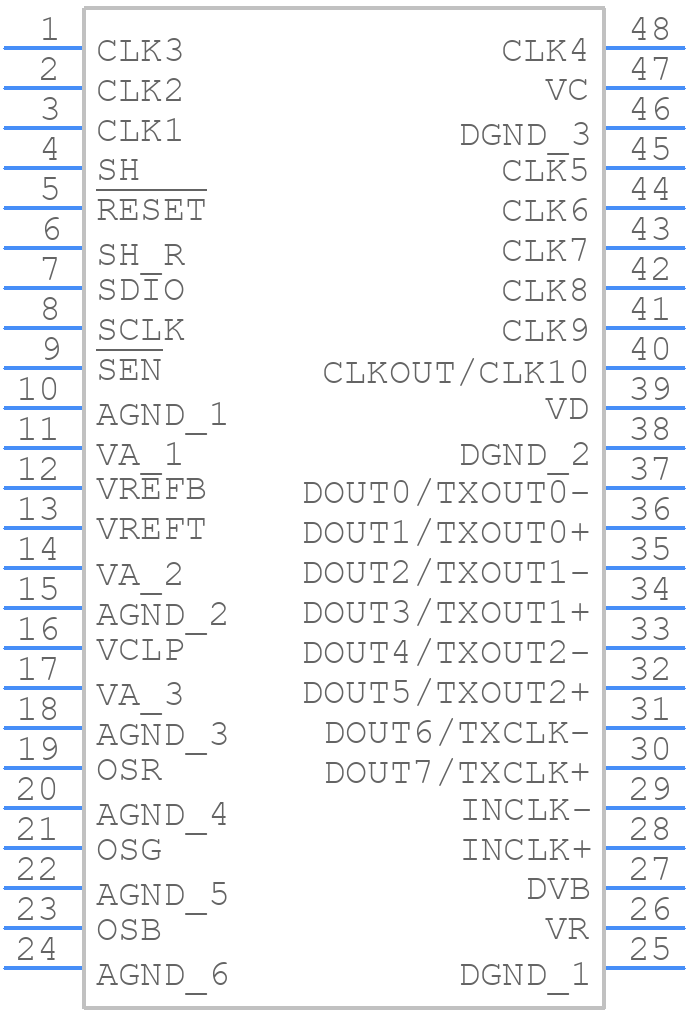

Use the download button to access the LM98714BCMTX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM987,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
