A good PCB layout for the LM98714 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling, use a high-quality power supply with low ripple and noise. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins, and use a 10kΩ resistor in series with the input capacitor to prevent oscillations.
The recommended input impedance for the LM98714 is 50Ω, and the recommended output impedance is 50Ω to 100Ω. Impedance matching is crucial for optimal performance and to prevent signal reflections.
To configure the LM98714 for a specific application, refer to the datasheet and application notes. Set the gain and bandwidth according to the application requirements, and adjust the input and output impedance accordingly. You may also need to add external components, such as filters or amplifiers, to achieve the desired performance.
The LM98714 has a maximum junction temperature of 150°C. Ensure good airflow around the device, and use a heat sink if necessary. Avoid overheating, as it can affect the device's performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LM98714CCMTX/NOPB Overview

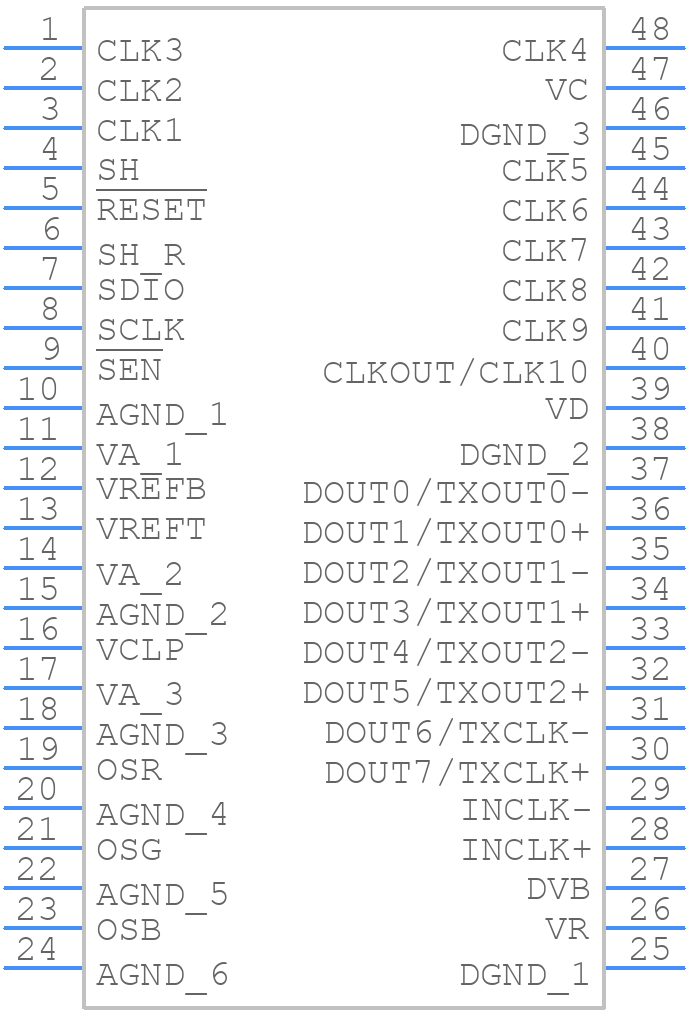

Use the download button to access the LM98714CCMTX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM987,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
