- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LMC6062IM
- Part Number LMC6062IM
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P600X175-8N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LMC6062IM Details
-
Manufacturer Part Number:
LMC6062IM
-
Brand Name:
Texas Instruments
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOIC-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Amplifier Type:
OPERATIONAL AMPLIFIER
LMC6062IM Frequently Asked Questions (FAQs)
-
Texas Instruments recommends following a star-grounding scheme, keeping the input and output traces short and away from each other, and using a solid ground plane to minimize noise and electromagnetic interference (EMI). Additionally, it's essential to follow proper PCB design and layout guidelines for high-frequency circuits.
-
The choice of resistors and capacitors depends on the desired gain, bandwidth, and stability of the amplifier. A good starting point is to use the datasheet's recommended values and then simulate the circuit using SPICE models or online tools to optimize the component values. Additionally, consider the parasitic capacitance and inductance of the components and the PCB layout.
-
The maximum power dissipation of the LMC6062IM is dependent on the ambient temperature and the package type. For the MSOP package, the maximum power dissipation is approximately 450mW at 25°C. To ensure the device doesn't overheat, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the ambient temperature within the recommended operating range.
-
To protect the LMC6062IM from ESD, it's essential to follow proper handling and assembly procedures, such as using anti-static wrist straps, mats, and bags. Additionally, ensure that the device is stored in a protective package and that the PCB is designed with ESD protection in mind, such as using ESD diodes or resistors.
-
Common pitfalls to avoid include incorrect pinout, inadequate power supply decoupling, and poor PCB layout. To troubleshoot issues, start by verifying the power supply and input signals, then check the output signal and circuit impedance. Use oscilloscopes and signal generators to debug the circuit, and consult the datasheet and application notes for guidance.
Trust Checks
System Verified
LMC6062IM Overview

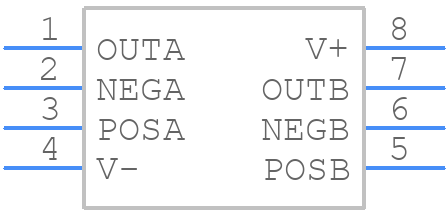

Use the download button to access the LMC6062IM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMC60,
or try a keyword search, such as Operational Amplifiers
