LMG3411R150RWHR - Texas Instruments

Description: Gate Drivers 600-V 150-m GaN with integrated driver and cycle-by-cycle overcurrent protection 32-VQFN -40 to 125

Download LMG3411R150RWHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

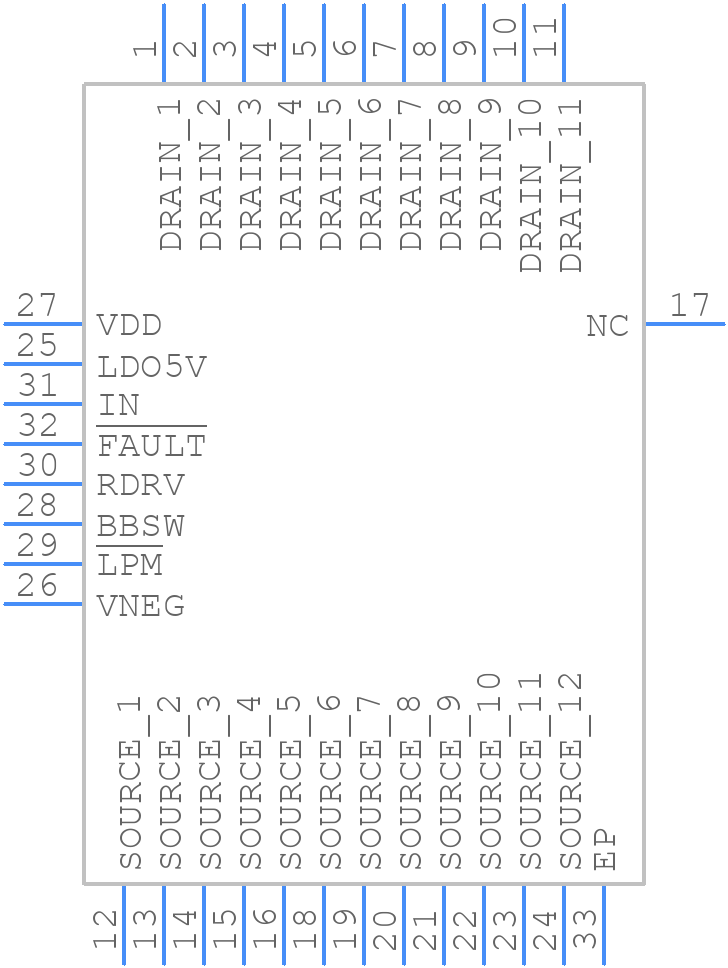

LMG3411R150RWHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMG3411R150RWHR - Texas Instruments PCB footprint - Other - Other - RWH0032A_2021
click to zoom
3D Models
LMG3411R150RWHR - Texas Instruments - 3D model - Other - RWH0032A_2021
click to zoom

LMG3411R150RWHR Details

  • Manufacturer Part Number:

    LMG3411R150RWHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-03-16

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    9.5 V

  • Supply Voltage-Nom (Vsup):

    6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8 mm

LMG3411R150RWHR Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) that the LMG3411R150RWHR can operate at is 150°C. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • To ensure proper cooling, it's recommended to use a heat sink with a thermal resistance of less than 10°C/W. Additionally, ensure good airflow around the device and avoid blocking the heat sink fins. You can also use thermal interface materials to improve heat transfer between the device and heat sink.
  • The recommended PCB layout for the LMG3411R150RWHR involves keeping the high-current paths short and wide, using multiple vias to connect the device to the heat sink, and keeping the decoupling capacitors close to the device. It's also recommended to use a solid ground plane and to avoid routing high-frequency signals near the device.
  • To protect the LMG3411R150RWHR from overvoltage and overcurrent conditions, it's recommended to use a voltage regulator or a TVS diode to limit the input voltage. Additionally, you can use a current sense resistor and a comparator to detect overcurrent conditions and shut down the device if necessary.
  • The recommended gate drive voltage for the LMG3411R150RWHR is between 10V and 15V. However, the device can operate with a gate drive voltage as low as 6V, but the switching performance may be affected.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LMG3411R150RWHR Overview

Use the download button to access the LMG3411R150RWHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMG34, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
