LMG3411R150RWHT - Texas Instruments

Description: Gate Drivers 600-V 150-m? GaN wit h integrated driver A 595-LMG3411R150RWHR

Download LMG3411R150RWHT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

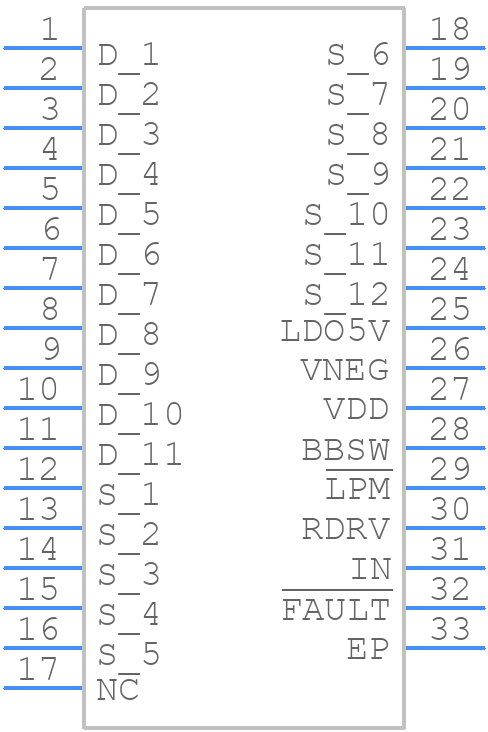

LMG3411R150RWHT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMG3411R150RWHT - Texas Instruments PCB footprint - Other - Other - RWH0032A_2026-1
click to zoom
3D Models
LMG3411R150RWHT - Texas Instruments - 3D model - Other - RWH0032A_2026-1
click to zoom

LMG3411R150RWHT Details

  • Manufacturer Part Number:

    LMG3411R150RWHT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-03-16

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    9.5 V

  • Supply Voltage-Nom (Vsup):

    6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8 mm

LMG3411R150RWHT Frequently Asked Questions (FAQs)

  • The maximum junction temperature of the LMG3411R150RWHT is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • Proper cooling of the LMG3411R150RWHT is crucial to prevent overheating. Ensure good airflow around the device, use a heat sink if necessary, and follow the thermal design guidelines provided in the datasheet.
  • The recommended PCB layout for the LMG3411R150RWHT involves keeping the high-frequency nodes (e.g., drain and source) as close as possible to the device, using a solid ground plane, and minimizing the length of the power traces. Refer to the datasheet and application notes for more detailed guidelines.
  • The LMG3411R150RWHT is a commercial-grade device, and its use in high-reliability or aerospace applications may require additional testing and qualification. Contact Texas Instruments for more information on the device's suitability for such applications.
  • Handle the LMG3411R150RWHT with care to prevent ESD damage. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-protected environment. Follow proper ESD handling procedures during assembly and testing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMG3411R150RWHT Overview

Use the download button to access the LMG3411R150RWHT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMG34, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
