Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the video signals.
The LMH0036SQE/NOPB requires a 3.3V power supply, and it's recommended to use a low-ESR capacitor (e.g., 0.1uF) for power supply decoupling. Additionally, a 10uF capacitor is recommended for bulk decoupling. Ensure that the power supply is clean and well-regulated to prevent noise and jitter.
The LMH0036SQE/NOPB supports cable lengths up to 30 meters (100 feet) at a data rate of 2.97 Gbps. However, the actual cable length may vary depending on the cable quality, signal attenuation, and other system parameters.
Use an oscilloscope to monitor the video signals and check for signal integrity issues, such as jitter, noise, or distortion. Also, verify that the device is properly configured and that the input signals meet the recommended specifications. If issues persist, consult the Texas Instruments support resources or contact their technical support team.
The LMH0036SQE/NOPB is specifically designed for SDI applications and is not compatible with other video standards like HDMI or DisplayPort. However, Texas Instruments offers other products that support these standards, such as the THS7313 for HDMI applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH0036SQE/NOPB Overview

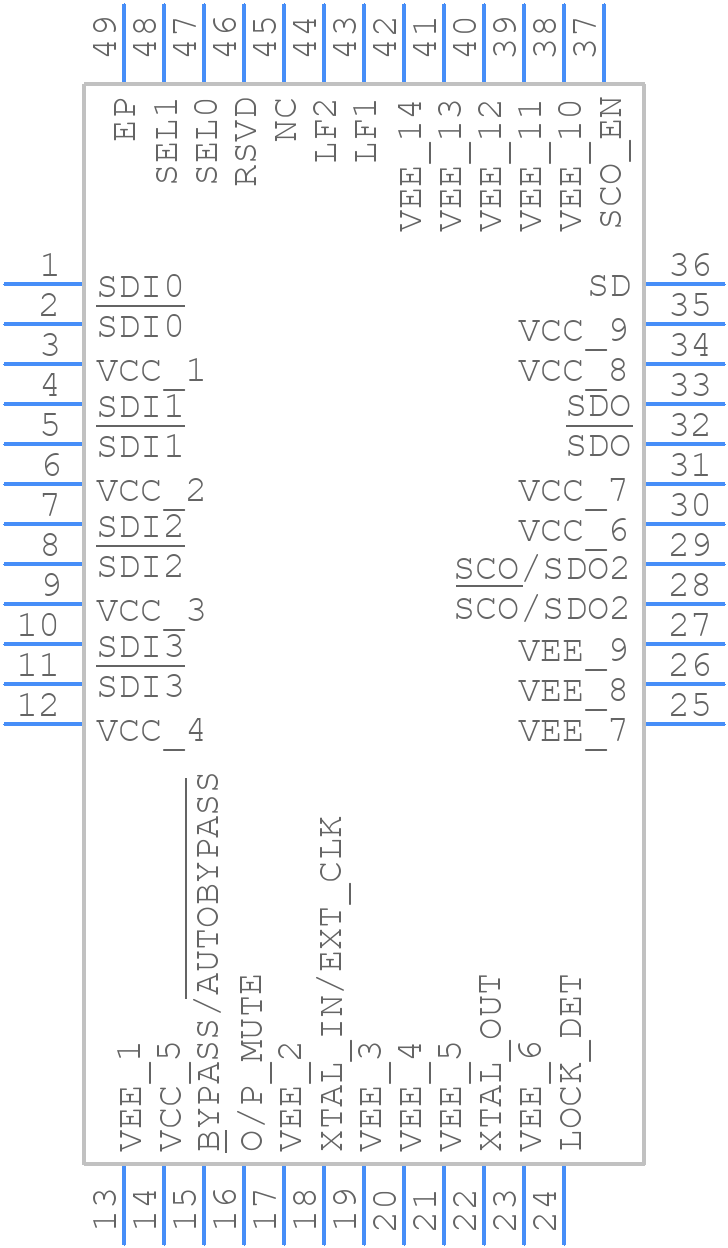

Use the download button to access the LMH0036SQE/NOPB schematic symbol, PCB footprint, and 3D model.
