Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the input and output signals.
The LMH0050SQE/NOPB requires a bias voltage of 5V, and the recommended bias current is 10mA. Ensure that the bias voltage is well-regulated and noise-free, and that the bias current is within the recommended range to achieve optimal performance.
The LMH0050SQE/NOPB has an operating temperature range of -40°C to 85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal shutdown.
Common issues with the LMH0050SQE/NOPB can be caused by improper PCB layout, inadequate biasing, or incorrect input/output termination. Troubleshoot by checking the PCB layout, bias voltage and current, and input/output termination. Use oscilloscopes and spectrum analyzers to measure the device's output and identify any issues.
While the LMH0050SQE/NOPB is designed for 50-ohm systems, it can be used in non-50-ohm systems with proper impedance matching. However, this may require additional circuitry and may affect the device's performance and stability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH0050SQE/NOPB Overview

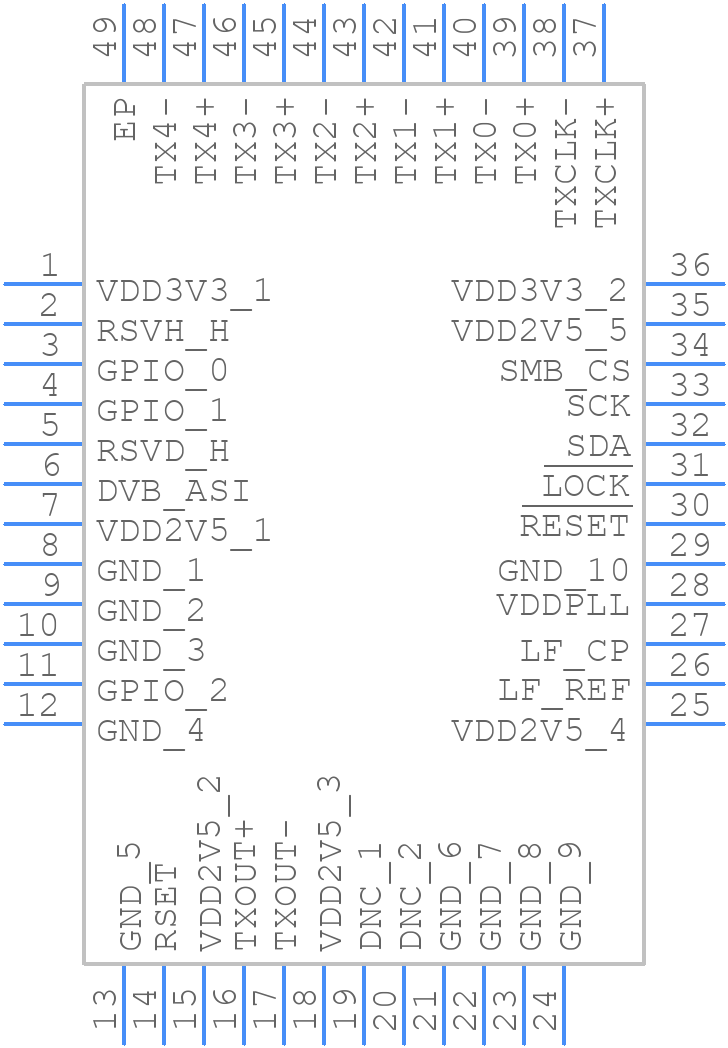

Use the download button to access the LMH0050SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH00,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
