Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
The LMH0051SQE/NOPB requires a single 3.3V power supply, and it's essential to decouple the power pins with 0.1uF and 10uF capacitors. Additionally, ensure that the power supply is clean and well-regulated to prevent noise and oscillations.
The maximum cable length supported by the LMH0051SQE/NOPB depends on the specific application and the type of cable used. However, as a general rule, it's recommended to keep cable lengths below 10 meters to ensure reliable data transmission.
To troubleshoot issues with the LMH0051SQE/NOPB, start by checking the power supply and decoupling, then verify the signal integrity and clock frequencies. Use oscilloscopes and logic analyzers to debug the signals and identify the root cause of the issue.
The LMH0051SQE/NOPB is designed to be compatible with other Texas Instruments devices, such as the LMH0344 and LMH0354. However, when using third-party components, ensure that they meet the required specifications and are compatible with the LMH0051SQE/NOPB's operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH0051SQE/NOPB Overview

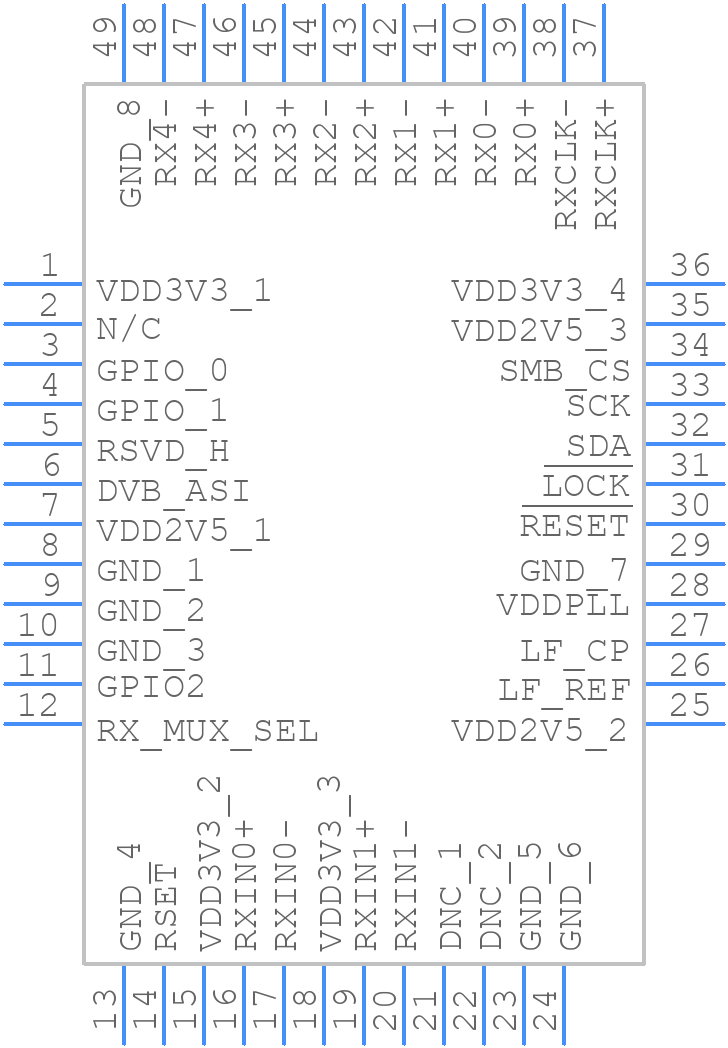

Use the download button to access the LMH0051SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH00,
or try a keyword search, such as Line Driver or Receivers
